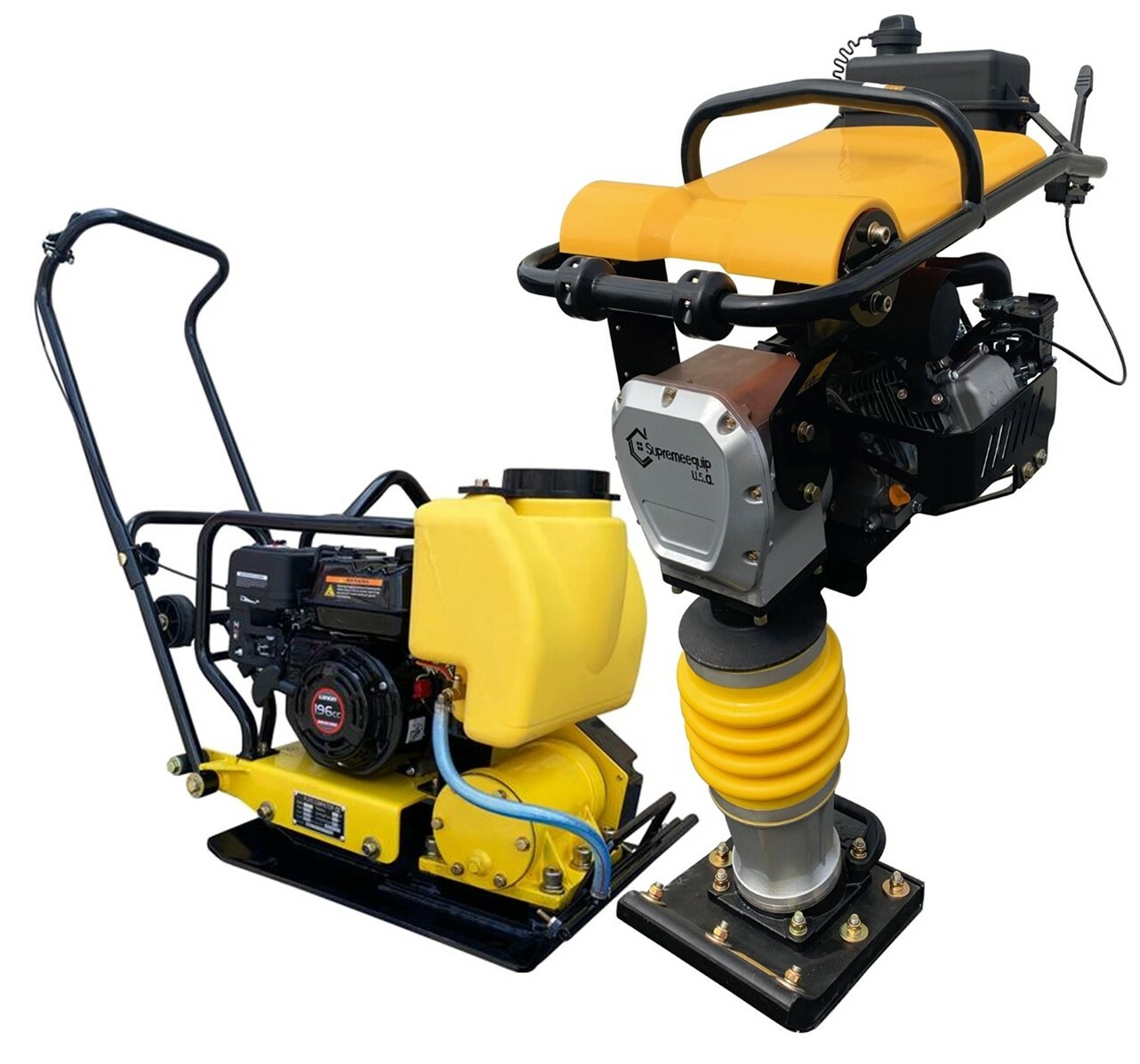

Up For sale 6.5HP Tamper Rammer AND6.5HP Gas Plate Compactor is in perfect working condition! fully operational and functions as intended.come with warranty.
The standard specifications for a 6.5HP Tamping Rammer (Jumping Jack) and a 6.5HP Gas Plate Compactor feature 4-stroke gasoline engines, with the rammer built for deep impact force on cohesive soils and the plate compactor optimized for broad surface vibration.
Specification
– 4 Stroke Gas Engine Tamping Impact Jack Rammer
– Approx Unit
– overall dimension: 18”L x 28-3/4”W x 42”H Aprox
– Engine power: 6.5 HP 4 Stroke Recoil Start
– Impact force alsoTamper Rammer is known as “ramming force”: 10,000N
– Percussion rate (ramming frequency): 450~650 times/min
– Jumping stroke (leap height): 40~65mm
– Forward speed (advancing speed): 10-13m/min
– This jack is upgraded to German import gas tank and bellows
– Ramming plate size: 13″ x 11-7/8″ (330 x 300mm ) approx
– The unit comes pre-assembled, works right out of the box after putting oil and gas.
– Everything comes as shown in photos.
– Includes wheels kit and extra filter
– Free Heavy Duty Flexible Funnel 18″ long with your purchase- Engine type : Forced Air -Cooled , 4 -Stroke Gasoline Engine .
– Max power 4.8KW (6.5HP) (3600RPM) .
– Displacement : 196 MI .
– Power HP : 6.5 . Compacts 12 Depth 3 Gallon
– Full Tank 10W30 .
– Effective base area : 25 x 18 Inch (620 x 450 mm) .
– Vibration Frequency : 6500 Climb ability : 0-20 Degree .
– Impact force ; (4000lb Force) .
– Compaction area : Max 3229 Ft/ hr
– Compaction depth Max 790 Inch
– Wheel kit included
– Compactor depth (Soil) (Cn) ; 30
– Forward speed (Soil) (M/ Min) : Up To 30
– Gradeability : 30%
– Package weight 190lbs
– Package Dimension : 25.6”L x 19.3”W x 27.6” H Inch
