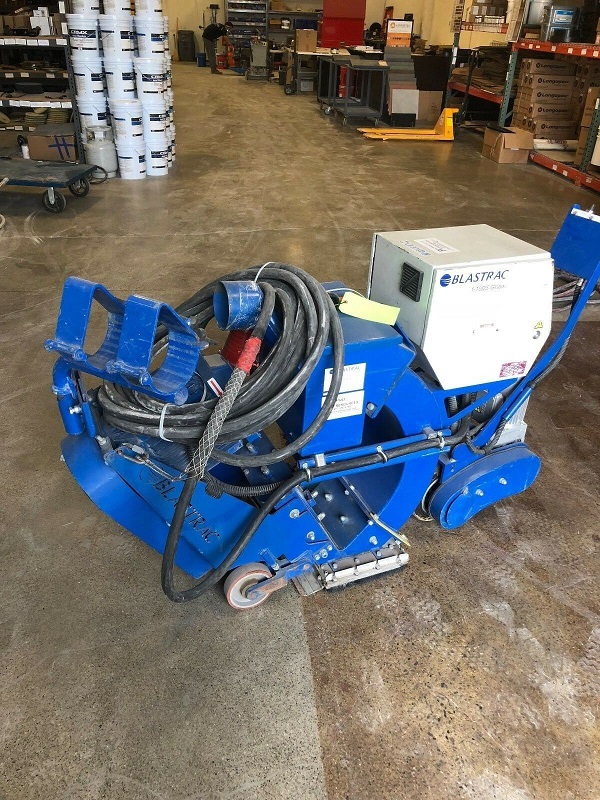

Blastrac 1-10DSGI With BDC-654 Dust Collector Blastrac Shot Blast Floor

Blastrac 1-10DSGI With BDC-654 Dust Collector Blastrac Shot Blast Floor

Ideal for medium and large sized jobs the 1-10DSGI is a versatile, self-propelled 10” shot blasting system. The AC inverted drive-motor for self-propelled operation features an integrated brake which helps maintain speed on ramps and inclines. This improves productivity and promotes a more even and consistent blast pattern and surface profile. When attached to the BDC-66 dust collector, it operates virtually dust-free.

Easily transportable, the 1-10DSGI has highly visible and manageable controls, and operates on 230 or 460V with its auto-sensing voltage control 15 hp UL listed motor. All electrical components and panels are UL certified as part of the Blastrac commitment to safety protocol.

SPECIFICATIONS:
Blasting Width: 10 in. (254mm)
Travel Speed: Up to 82 ft/min. (25m/min)
Prod. Capacity: Up to 1937 sq.ft/hr (180m2/h)
on concrete
Blast Motor: 15 hp (11kw)
Voltage: 460/230V, 3ø, 60 Hz
Amperage: 21/39A
Power Cord: 60 ft. (18.28m)
Dust Hose Connection: 5 in. (127mm)
Dimensions: L 64 in. x W 18 in. x H 43 in.
(1625mm x 425mm x 1100mm)
