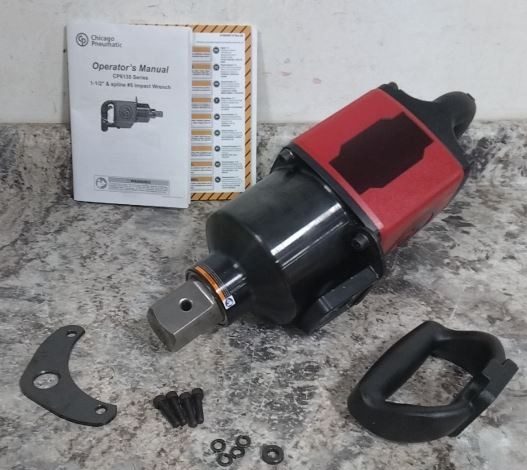

Up for sale Chicago Pneumatic CP6135-D80 1-1/2 In Square Drive 1/2 In NPT Air Impact Wrench
The Chicago Pneumatic CP6135-D80 is a 1-1/2-inch square drive industrial pneumatic impact wrench featuring a 1/2-inch NPT air inlet, 5,900 ft.lbs (8,000 Nm) maximum reverse torque, and a pinless rocking dog clutch.
Specifications
- Handle Type: D-Handle with inside trigger
- Clutch Type: Pinless Rocking Dog
- Socket Retainer: Through-hole
- Net Weight: 35.3 lbs (16 kg)
- Length: 16 in (408 mm)
- Side-to-Center: 2.65 in (67.5 mm)
- Sound Pressure / Power: 98 dB(A) / 109 dB(A)
- Vibration Level: 13.6 m/s² (uncertainty 2.2 m/s²)
-
- Air Inlet Thread Size: 1/2 in NPT
- Actual Air Consumption: 84.5 CFM (40 L/s)
- Working Pressure: 90 psi (6.3 bar)
- Minimum Hose Size: 5/8 in (19 mm)
-
- Square Drive: 1-1/2 in
- Max Reverse Torque: 5,900 ft.lbs (8,000 Nm)
- Working Torque Range (Forward): 740 – 4,055 ft.lbs (1,000 – 5,500 Nm)
- Free Speed: 2,800 RPM
- Impact Rate: 750 BPM (Blows Per Minute)
- Max Bolt Capacity: M48 (1-7/8 in)
