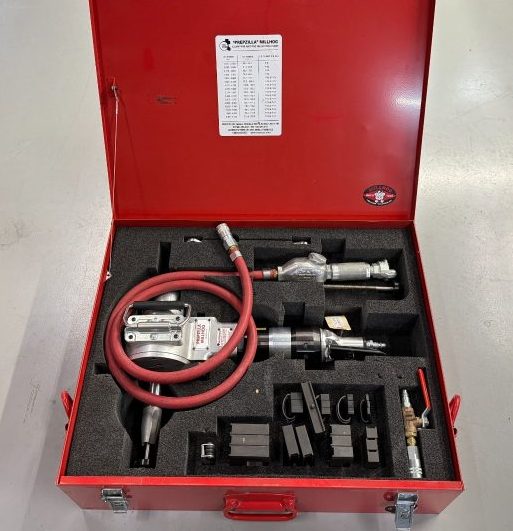

Hot sale Esco Tool Prepzilla MILLHOG Pneumatic Pipe Bevel Tool is in perfect working condition! fully operational and functions as intended.
The Esco Tool Prepzilla MILLHOG Pneumatic Pipe Bevel Tool features an I.D. clamping range of 1.575″ to 8.625″ (40 mm to 219.1 mm), powered by a robust 2.0 hp (1,491 W) pneumatic motor operating at 90 psi (6.2 bar). It delivers high torque at low RPM to machine hard alloys without cutting fluid
Specifications
- Power Output: 2.0 hp (1,491 W)
- Operating Air Pressure: 90 psi (6.2 bar)
- Motor Type: Interchangeable pneumatic (electric and hydraulic options also available)
- Turning O.D. Range: Up to 8.75″ (222.3 mm) / 223 mm
- Head Length: 19.75″ (501.65 mm)
- Mandrel & Clamps: Uses 1 mandrel and 8 sets of clamps for the full size range
-
- Simultaneous Operations: Can bevel, face, and counter-bore at the same time.
- No Cutting Fluid Required: Generates thick metal chips that transfer heat away from the pipe surface.
- Bearing Construction: Built with dual opposed tapered roller bearings for structural rigidity.
- Tooling System: Utilizes the EscoLock blade locking system and TiN-coated T-15 cutter blades
