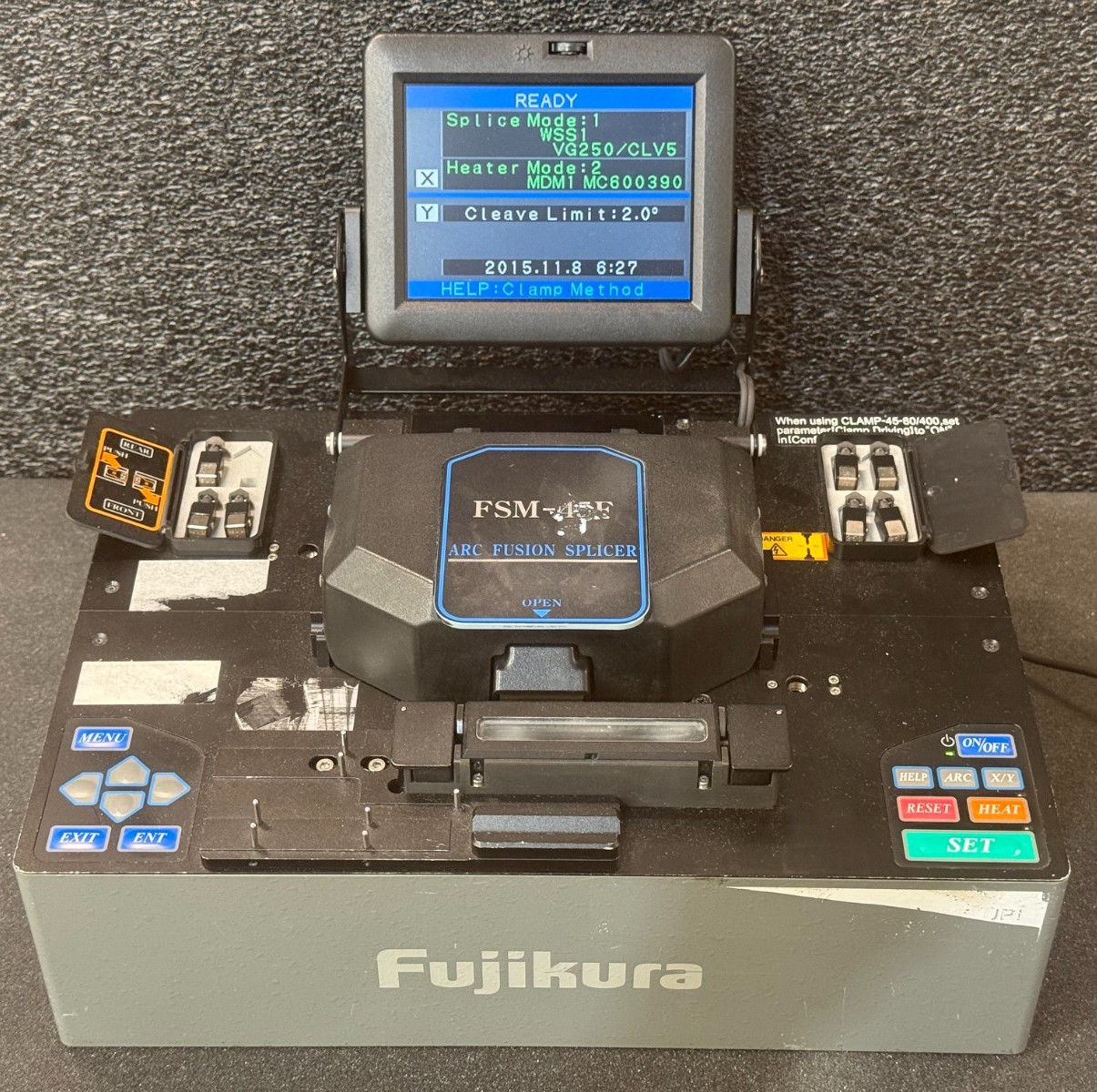

Up For sale Fujikura FSM-45F Core Alignment Factory Fusion Splicer Kit is in perfect working condition! fully operational and functions as intended.
The Fujikura FSM-45F is a core-alignment factory fusion splicer featuring Profile Alignment System (PAS) technology, designed to handle standard and specialty fibers with a cladding diameter range from under 80 µm to 400 µm
Specifications
- Alignment Method: Core-to-core via Profile Alignment System (PAS)
- Cladding Diameter: <80 µm to 400 µm
- Coating Diameter: Up to 3,000 µm using universal fiber clamps/holders
- Typical Splice Loss: 0.02 dB (Single-mode), 0.01 dB (Multimode), 0.04 dB (Dispersion Shifted)
- Splice Time: Approximately 20 seconds (SM mode)
- Cleave Length: 8 mm to 10 mm (standard); 3 mm to 5 mm (short cleave capability)
- Special Features: Sweep arc technology for dissimilar fiber combinations, loss estimation, and GP-IB/USB interfaces
