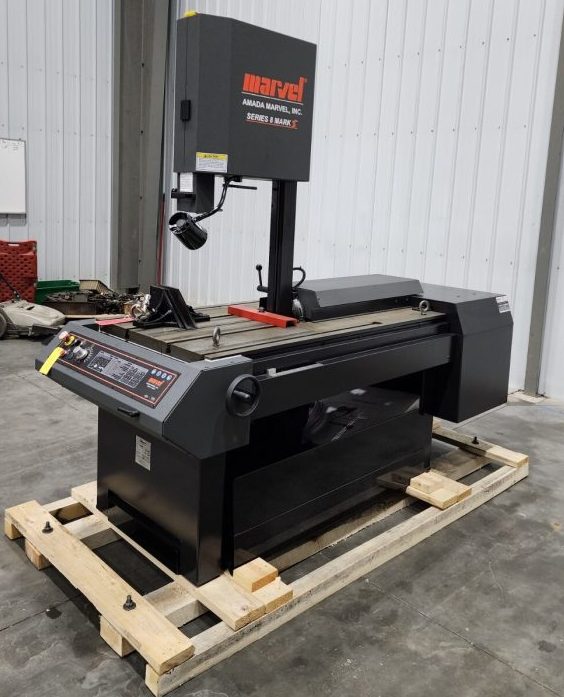

Flash sale Marvel Model 8 Mark II Vertical Tilt Frame Saw, 18″ x 22″ Capacity 480V is in perfect working condition! fully operational and functions as intended.come with warranty
The Marvel Model 8 Mark II is a highly versatile vertical tilt-frame band saw renowned for its heavy-duty cast iron construction and all-mechanical design. It features a 5 HP motor and operates across a wide range of metal-cutting applications with the following key specifications
specifications
- At 90°: 18″ (horizontal) × 22″ (vertical)
- At 45° Tilt (Left or Right): 18″ (horizontal) × 12.75″ (vertical)
- Maximum Vise Opening: 21″
- Blade Dimensions: 14′ 6″ × 1″ × 0.035″
- Blade Speed: Variable from 50 to 450 FPM (Feet Per Minute)
- Feed Pressure: 0 to 140 lbs.
- Column Tilt: 45° Left and Right (with a 0° to 3° canted column for miter/structural cutting
- Voltage Options: Configurable for 230V or 480V, 3-Phase power (depending on factory setup).
- Table Dimensions: Working area of 33″ × 24″
- Table Height: 34.5″
