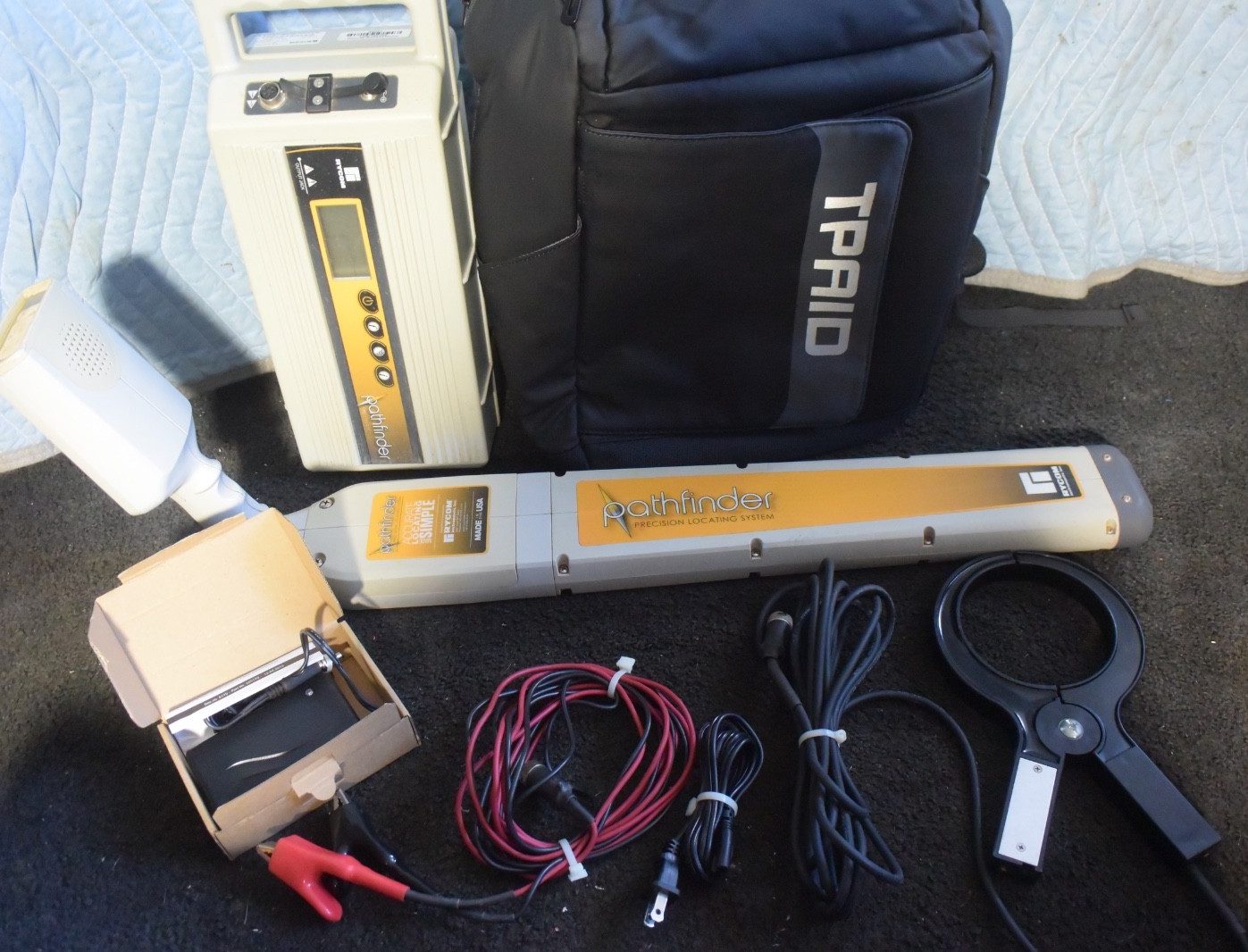

Up For sale Rycom Model PathFinder Locator Set with Inductive Clamp is in perfect working condition! fully operational and functions as intended.
The Rycom PathFinder Locator Set is a multi-frequency precision pipe and cable locator designed for high-accuracy tracing, featuring FrequencyFlex™ (1000+ programmable frequencies from 200Hz to 476.2kHz) and 10W output power. It includes an inductive clamp for applying signals, a receiver, transmitter, and supports passive locating, GPS data logging, and depth/current measurement.
Specification
- Locating Modes: Peak, Null, Left/Right Compass Guidance, and Simultaneous Live Depth & Current Measurement.
- Depth Readout: Digital 3-digit LCD readout ranging from 0.02 m to 10.6 m (metric/imperial selectable).
- Power Source: Rechargeable Lithium-Ion battery pack or interchangeable C-cell battery tray.
- Output Power: Variable configurations up to 10 Watts depending on the specific Pathfinder sub-model package.
- Frequencies: Active route tracing frequencies from 200 Hz to 476.2 kHz; signal induction from 33 kHz to 476.2 kHz.
- Load Matching: Automatic matching from 5 ohms to 25,000 ohms.
- Power Source: Rechargeable Li-Ion packs or standard interchangeable D-cell battery trays
