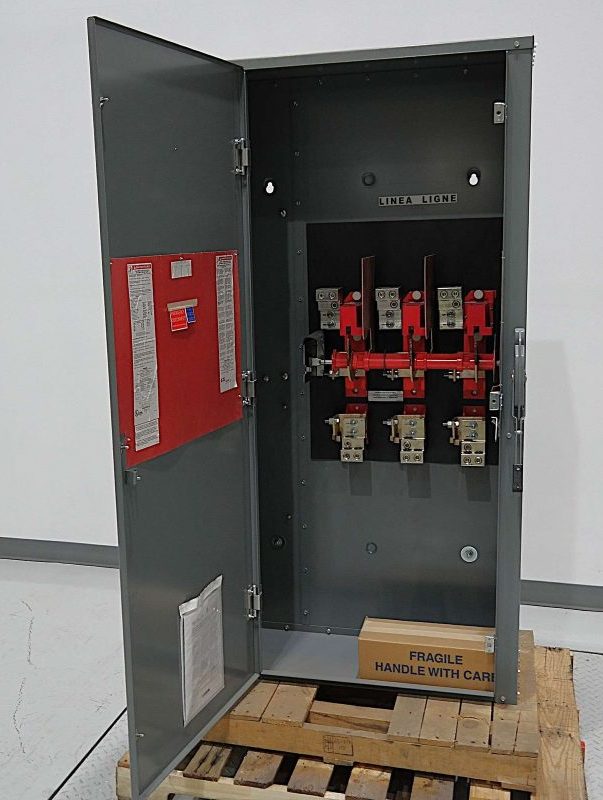

Flash sale Square D H367N 800 Amp 600VAC Heavy Duty Safety Disconnect Switch is in perfect working condition! fully operational and functions as intended.come with warranty
The Square D H367N is an 800 Amp, 600VAC/VDC heavy-duty safety disconnect switch. It features a 3-pole, 4-wire configuration with a factory-installed neutral, Class L fuse provisions, and a indoor NEMA 1 steel enclosure, delivering reliable industrial power interruption
Specifications
- Current Rating: 800 A
- Voltage Rating: 600 VAC / 600 VDC
- Poles / Wires: 3 Poles, 4-Wire (3-Phase + Neutral)
- Disconnect Type: Fusible (Class L bolt-in fuses, 601–800 A)
- Short Circuit Current Rating (SCCR): Up to 200 kA max
- Action Type: Single Throw
-
- 480 Volt AC (3-Phase): 500 hp (or 200 hp standard configuration rating depending on load type)
- 600 Volt AC (3-Phase): 500 hp
- 600 Volt DC: 50 hp
