Hot sale Stanley Assembly Technologies BR12PP-8 Process Monitoring Smart Blind Rivet Tool is in perfect working condition! fully operational and functions as intended.

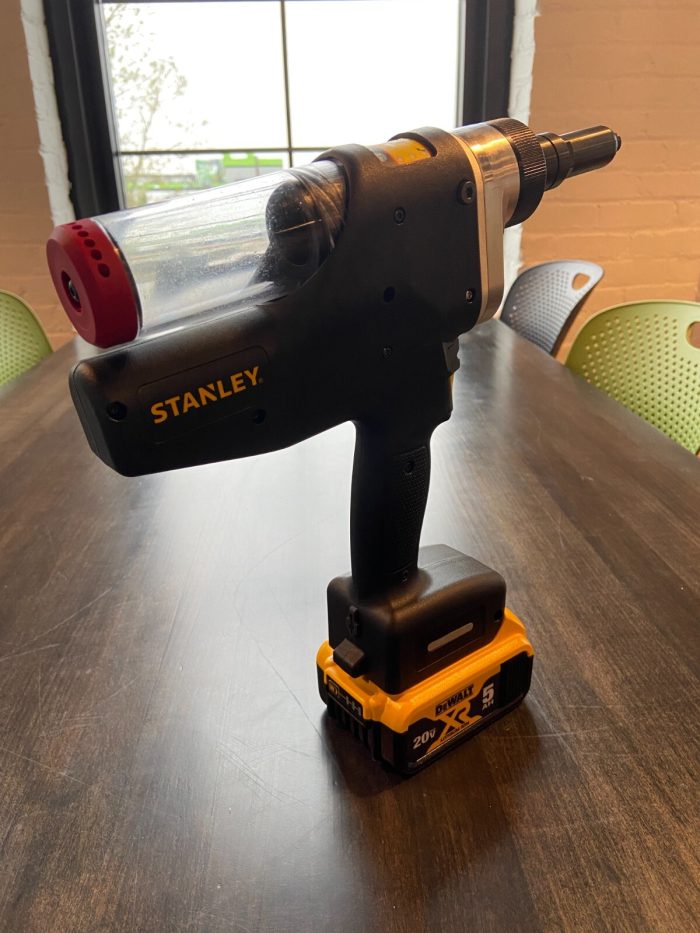

The Stanley BR12PP-8 Process Monitoring Smart Blind Rivet Tool is a 20V cordless, 8kN pull-force tool designed for 1/8″ (3.2mm) to 3/16″ (4.8mm) rivets, featuring real-time force/distance monitoring and 500-result storage. It provides full error-proofing (rivet count, job selection) and integrates with QBE controllers via WiFi for full traceability
Specification
- Pulling Force: 8 kN (max capacity)
- Rivet Size Range: 1/8″ (3.2 mm) to 3/16″ (4.8 mm)
- Battery Platform: Powered by DeWalt 20V (18V in EU) 5Ah battery
- Capacity Per Charge: Approx. 2,000 to 2,500 rivets per 5Ah battery charge
- Parameter Tracking: Measures and records force and distance (stroke length) for every cycle
- Data Storage: Local storage for up to 500 fastening cycles and 2 detailed traces
- Software Suite: Configurable and analyzable via onboard micro-USB port using the Alpha Toolbox suite or exportable to Excel
- Trace Detail: Records force, distance, speed, current, and voltage every 1 ms during a pull
