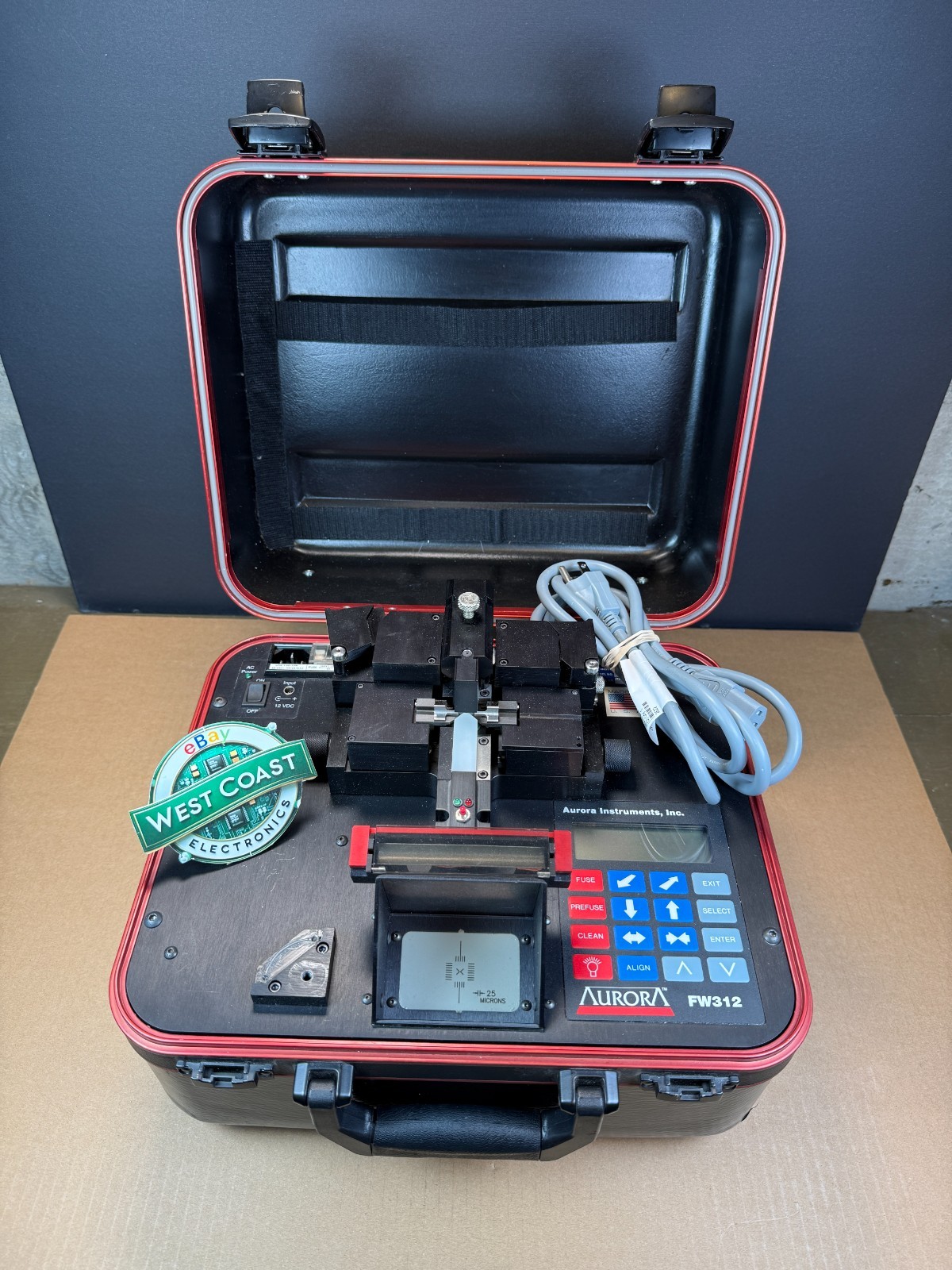

Up For sale Aurora FW312 SM MM Core Alignment Fusion Splicer is in perfect working condition! fully operational and functions as intended.
The Aurora Optics FW312 is a 3-axis core-alignment fusion splicer featuring 0.05 \(\mu \)m resolution piezo positioners, a rear projection screen with 45X magnification, and LID system (Local Injection and Detection) for core-to-core alignment. It achieves an average SM fiber splice loss of 0.016 dB.
Specification
- Fiber Diameter: Glass cladding diameter from 75 µm to 200 µm.
- Buffer Compatibility: All buffers and colors up to 900 µm.
- Alignment System: Core-to-core 3-axis alignment using a Local Injection and Detection (LID) system with 0.05 µm position resolution.
- Splice Loss: Average single-mode splice loss of 0.016 dB, estimating extrinsic loss within 0.02 dB.
- Programs: Factory-programmed with 6 common profiles and storage for 14 additional custom profiles
