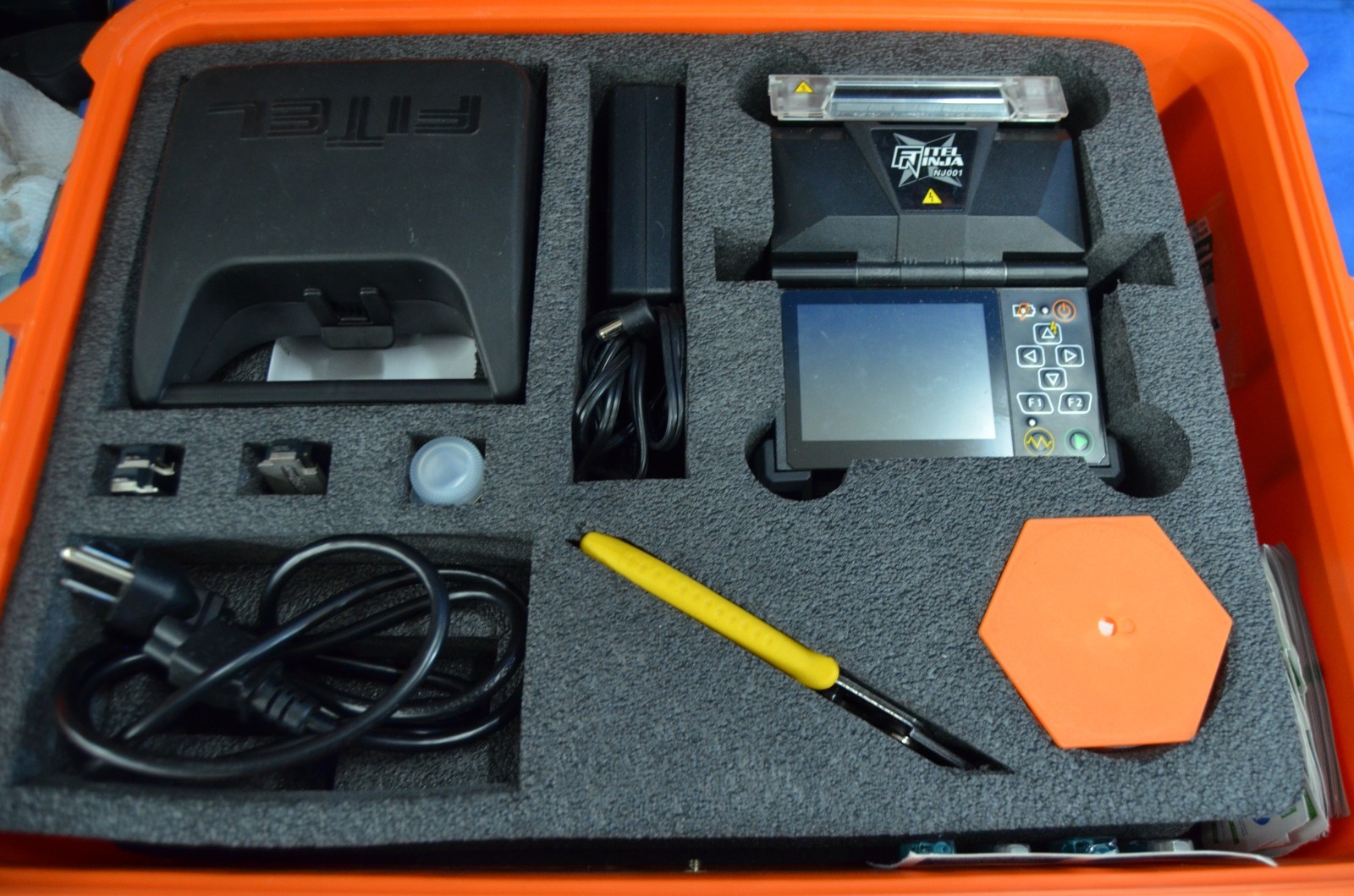

Up For sale Fitel Ninja NJ001 Fusion Splicer with S325A is in perfect working condition! fully operational and functions as intended.
The FITEL Ninja NJ001 is a compact, ruggedized handheld fusion splicer optimized for FTTx, LAN, and Metro applications, featuring a 3-LED illumination system, 8N high-propulsion motor, and detachable V-groove for easy maintenance. It offers 100 splicing/heating cycles, supports Splice-on-Connectors, and has a 58X magnification.
Specifications
- Fiber Compatibility: Single fiber up to 12-fiber ribbons
- Cladding / Coating Diameter: 0.125 mm cladding; 0.25 mm and 0.9 mm coatings
- Cleave Length: Fixed 10 & 16 mm, or variable 3 to 20 mm (single fiber)
- Operation: One-step action with automatic waste fiber collection
- Dimensions & Weight: 93W × 68D × 52H mm (330 g)
-
- Applicable Fibers: SM (G.652), MM (G.651), DSF (G.653), NZD (G.655), and BIF/UBIF (G.657 bend-insensitive)
- Average Splice Loss: 0.05 dB (SM/BIF), 0.02 dB (MM), and 0.08 dB (DSF/NZD)
- Splice & Heat Time: ~13 seconds for splicing; ~17 seconds for heating (40 mm sleeve)
- Battery Capacity: Typically 100 splice and heating cycles on a full charge
- Dimensions & Weight: 124W × 161D × 64.5H mm (970 g with battery)
