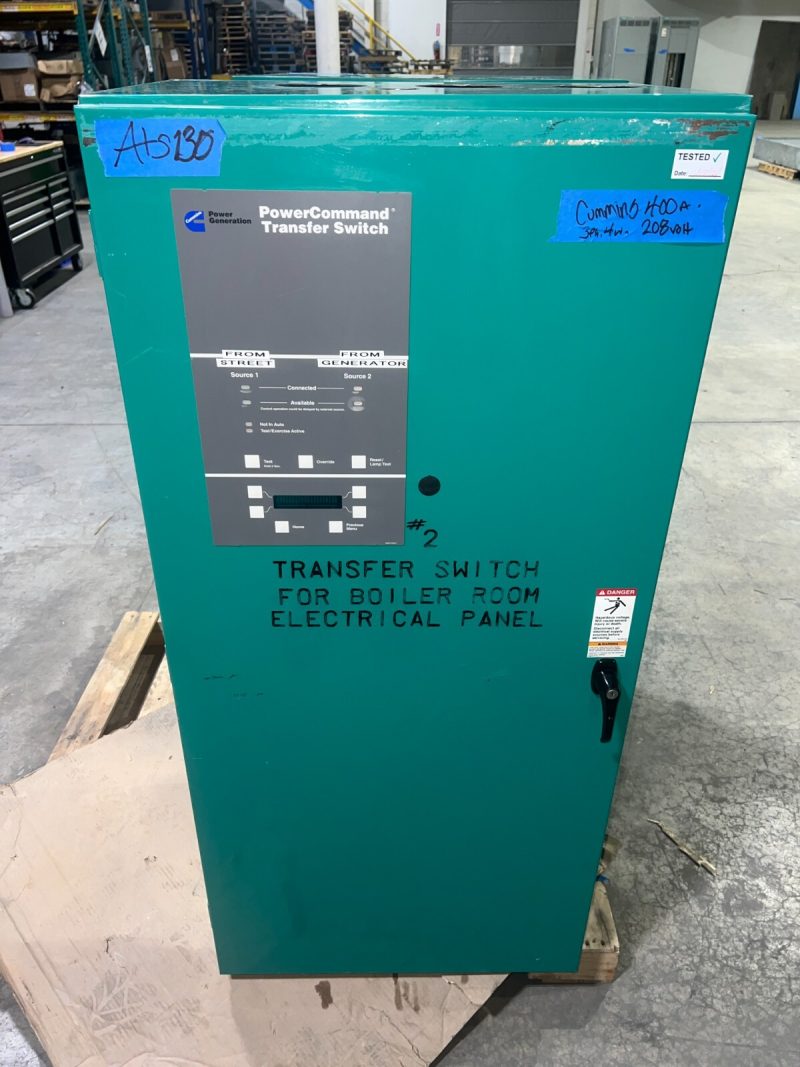

Up for sale CUMMINS 400 Amp ATS Automatic Transfer Switch 208v 120v 3 Phase 4 Pole is in perfect working condition! fully operational and functions as intended.
The Cummins 400 Amp OTEC series automatic transfer switch (e.g., model numbers A075F127 for indoor NEMA 1 or A075F130 for outdoor NEMA 3R) operates at 120/208V AC, 3-phase, 4-wire with neutral, 60 Hz. It features the PowerCommand microprocessor control, linear motor actuation, and handles full 400A switching loads
Specifications
- Amperage Rating: 400 Amps continuous load capacity
- Voltage & Phase: 120/208 Volts AC, 3-Phase, 4-Wire (includes neutral)
- Frequency: 60 Hz
- Poles / Neutral: Available in 3-Phase configurations with 4-pole/switched neutral options to prevent ground current loops
- Controller: PowerCommand 40-11 digital microprocessor with LCD display, tactile pushbuttons, and LED source indicators
- Transfer Mechanism: Bi-directional linear motor actuator providing smooth, constant-force switching without complex gears
- Transfer Time: Source-to-source transition does not exceed 6 cycles (excluding programmed transition modes)
- Transition Modes: Open delayed, open in-phase, or programmable transition
