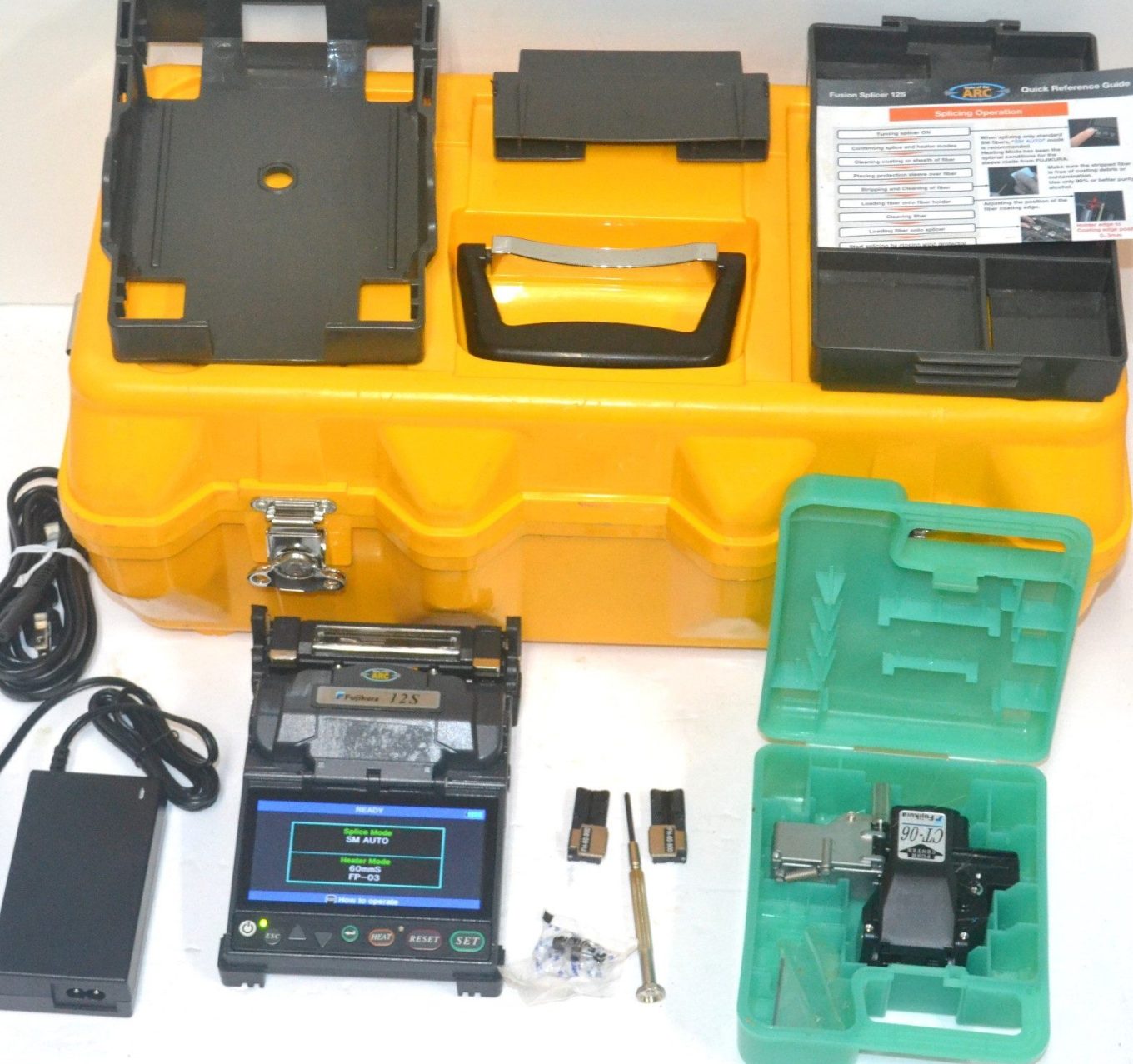

Up For sale Fujikura 12S Fiber Fusion Splicer Kit CT-06 is in perfect working condition! fully operational and functions as intended.
This used US model Fujikura 12S Fusion Splicer Kit features only 132 total arc counts, offering near-new performance with a CT-06 cleaver and 900μm fiber holders. It is a highly portable, ruggedized, 2-axis fixed v-groove splicer suitable for SM/MM fibers, featuring a 4.47″ screen and 100-cycle battery
Specification
- Alignment Method: Cladding alignment with fixed V-grooves.
- Compatible Fibers: Single-mode (SM/G.652, G.657) and Multi-mode (MM/G.651).
- Splice Time: 9 seconds standard.
- Heating Time: 30 seconds for 60mm sleeves.
- Battery Capacity: BTR-10 battery rated for approximately 100 splice and heat cycles
-
- Fujikura 12S Splicer Body with BTR-10 battery and ELCT2-12 electrodes.
- CT-06 Fiber Cleaver for single fibers.
- Fiber Holders: FH-60-250 (250 µm) and FH-60-900 (900 µm) pairs.
- Accessories: ADC-19 AC Adapter, power cord, AP-01 alcohol dispenser, screwdriver, and CC-29 hard transit case
