Up For sale is in perfect working condition! fully operational and functions as intended.

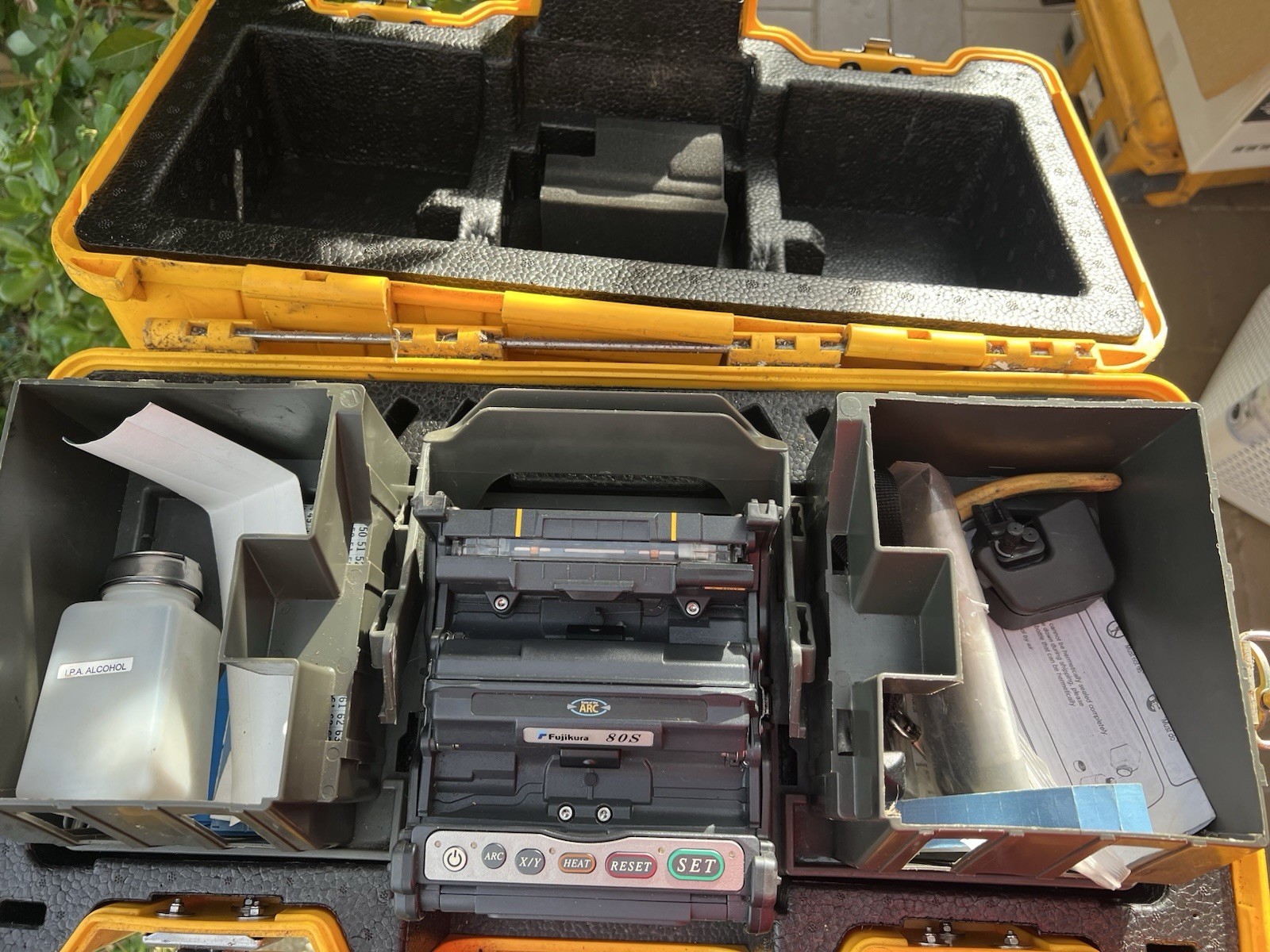

The Fujikura FSM-80S is a core-alignment fusion splicer designed for high-precision, rapid fiber splicing (7-second splice, 14-second heat) with a ruggedized design for harsh environments. It features automatic wind protectors, a 200-cycle battery, and a 5-to-16mm cleave length, capable of splicing SM, MM, DS, and NZDS fibers
Specifications
- Dimensions: 146W x 159D x 150H mm.
- Weight: 2.7 kg (with BTR-09 battery).
- Durability: Dust, moisture, and 6-direction drop-proof ruggedized body.
- Battery Capacity: Standard Li-ion BTR-09 battery supports 200 full splice/heat cycles.
- Electrode Life: 3,000 arc discharges
-
- Fiber Alignment: Core-to-core alignment via PAS technology.
- Average Splice Loss: 0.02 dB (Single-mode G.652) and 0.01 dB (Multi-mode).
- Applicable Fibers: SM (G.652/G.657), MM (G.651), DS (G.653), NZDS (G.655).
- Splice & Heat Times: 7-second ultra-fast splicing and 14-second tube heating
- Cleave Length: 5 mm to 16 mm
