Up For sale is in perfect working condition! fully operational and functions as intended.

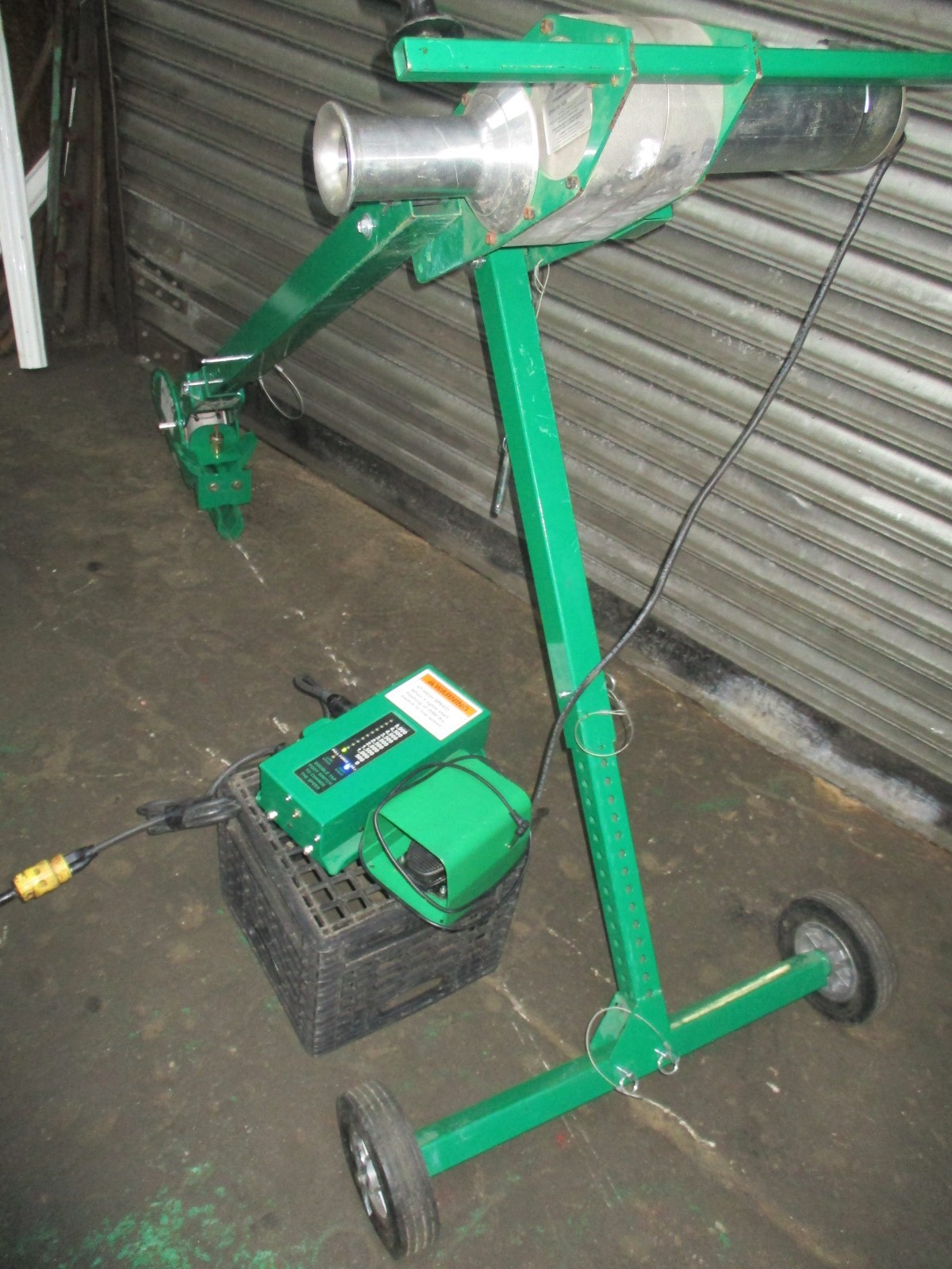

The Greenlee UT4 Ultra Tugger is a 4,000 lb (17.8 kN) capacity, two-speed cable puller designed for one-person setup, operating on a standard 120V 15A circuit. It features a 1-1/4 HP motor, 8-inch solid wheels for mobility, and a quick-latch system for tool-free attachment to 2″ to 4″ conduits. It offers high-speed (2,000 lb, 26 fpm) and low-speed (4,000 lb, 13 fpm) options
Specifications
- Power Source: 1-1/4 hp drive motor, 120 VAC, 60 Hz, 15 Amp
- Conduit Compatibility: 2″ to 4″ (using the quick-latch system without adapters)
- Weight: 175 lbs (80 kg)
- Recommended Rope: 9/16″ diameter double-braided composite with 16,000 lbs minimum breaking strength
- Boom Extension: Standard max 8′ (2.4 m); optional long boom extension max 12′ (3.6 m)
-
- Max Pulling Force: 4,000 lbs (1,818 kg) on low speed; 2,000 lbs (909 kg) on high speed
- Continuous Pulling Force: 3,000 lbs (1,364 kg) on low speed
