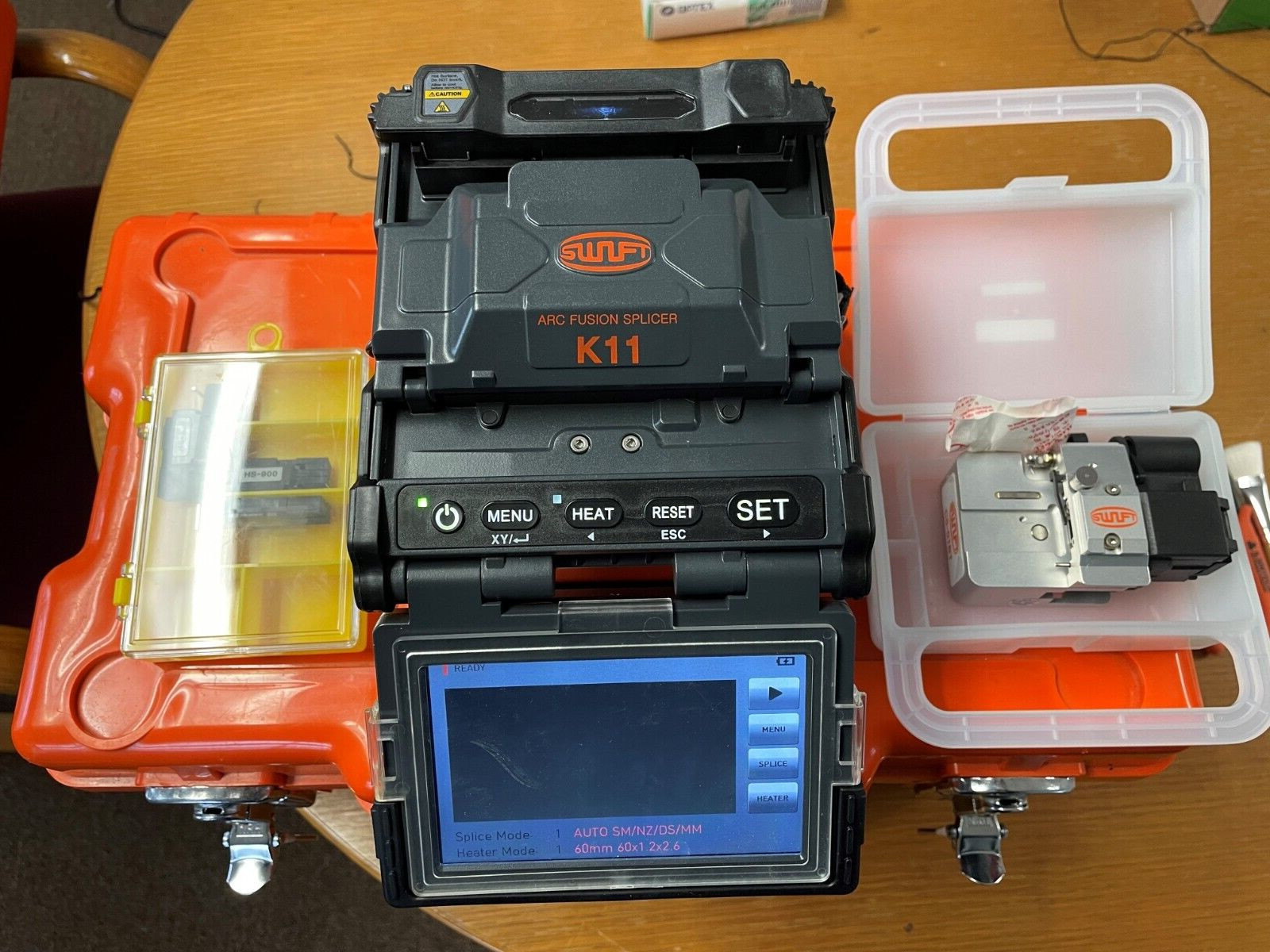

Up For sale ILSINTECH Swift K11 SM MM Core Fiber Fusion Splicer is in perfect working condition! fully operational and functions as intended.
Ilsintech Swift K11 Core Alignment Fusion Splicer
Swift K11 is the most advanced and best performing core-to-core alignment splicer available. The K11 is ideal for medium and long range optical circuit, LAN, CATV, FTTx. With a compact, light, rugged design and a long life battery, the K11 delivers high precision performance. Furthermore, a 5″ color monitor with touch screen offers users convenience and an efficient working process.
Specification
- Alignment Method: IPAAS core-to-core (Image Pattern Analysis Alignment System)
- Fiber Type: Single fiber (SM, MM, DS, NZDS)
- Cladding Diameter: 80 to 150 µm
- Coating Diameter: 100 µm to 4 mm
- Typical Splice Loss: SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB
- Splice Time: Typical 6 seconds (Quick Mode)
- Heating Time: 9 seconds (IS-45 sleeve), 13 seconds (IS-60 sleeve)
