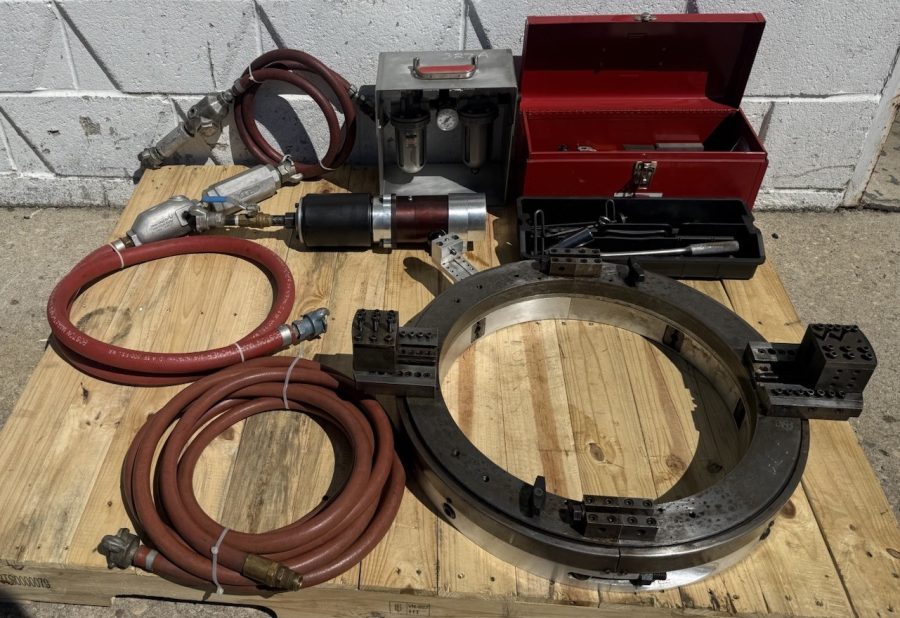

Hot sale MACTECH 816LC Clamshell Pipe Lathe Split Frame with Air Motor 10.75”-16” is in perfect working condition! fully operational and functions as intended.
The Mactech 816LC Clamshell Lathe is a split-frame portable pipe lathe designed for simultaneous cold cutting and beveling on 10.75” to 16” outer diameter (10” to 16” nominal bore) pipes. The air-driven model requires an air supply of 100 cfm at 100 psi (2.8 m³/min at 6.9 bar)
- Pipe Size Range: 10.75” to 16.00” (273 to 406 mm) O.D.
- Functions: Cold cuts, severs, and bevels simultaneously in hazardous environments.
- Feed Mechanism: 7-point starwheel and tripper.
- Feed Rate: 0.004 inches (0.09 mm) per revolution.
- Tool Bits: Accepts standard 3/4” or 1” tool bits
- Operating Weight (Air Drive): Approx. 107 lbs / 49 kg (includes tool blocks and motor).
- Shipping Weight (Air Drive): Approx. 231 lbs / 105 kg
