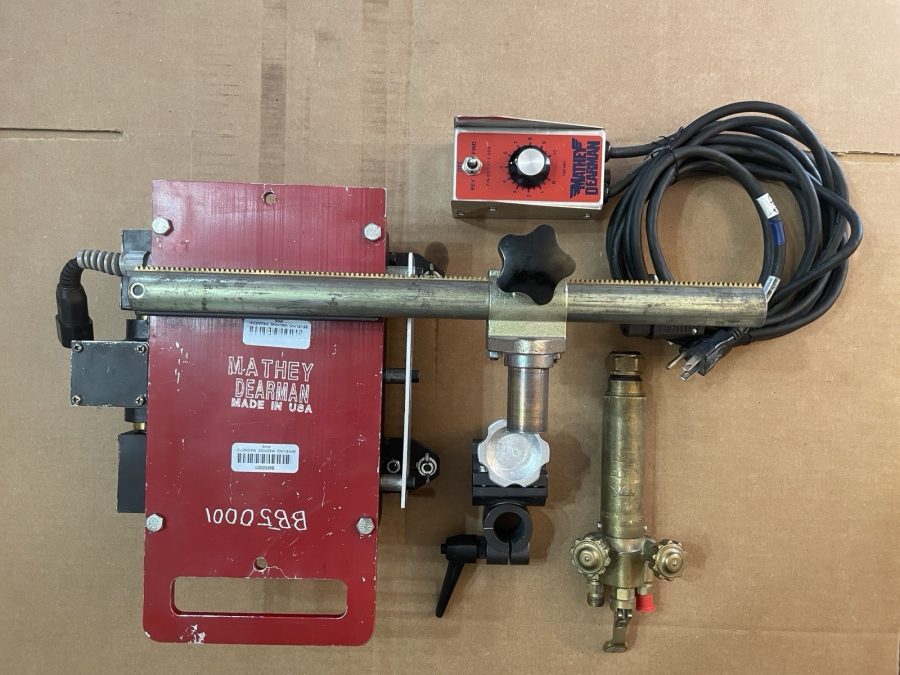

Hot sale Mathey Dearman MiniMag XM Pipe And Plate Cutting Machine With Controller & Torch is in perfect working condition! fully operational and functions as intended.
The Mathey Dearman MiniMag XM is a portable magnetic cutting and beveling machine. It uses rare earth magnets with 300 lbs (136 kg) of holding force to mount directly on steel pipes or plates. Unlike the MagnaCut XM, the MiniMag XM features a manual rack-and-knob torch adjustment instead of an electric torch arm
Specifications
- Cutting Range (O.D. Pipe): 6 5/8″ (168 mm) and larger
- Cutting Range (I.D. Pipe): 24″ (610 mm) and larger
- Wall Thickness Capacity: Up to 3″ (76 mm) max
- Magnetic Force: 300 lbs (136 kg) total / 150 lbs (68 kg) per wheel assembly
- Max Coating Thickness: Handles pipe coatings up to 0.015″ (0.4 mm) thick
- Setup Time: Under 2 minutes
- Torch Movement: Manually rotated rack and knob (differs from motorized arm on MagnaCut XM)
- Orientation: Works on horizontal or vertical flat surfaces and pipes
- Safety Requirement: Must always be secured with an included safety strap during operation
