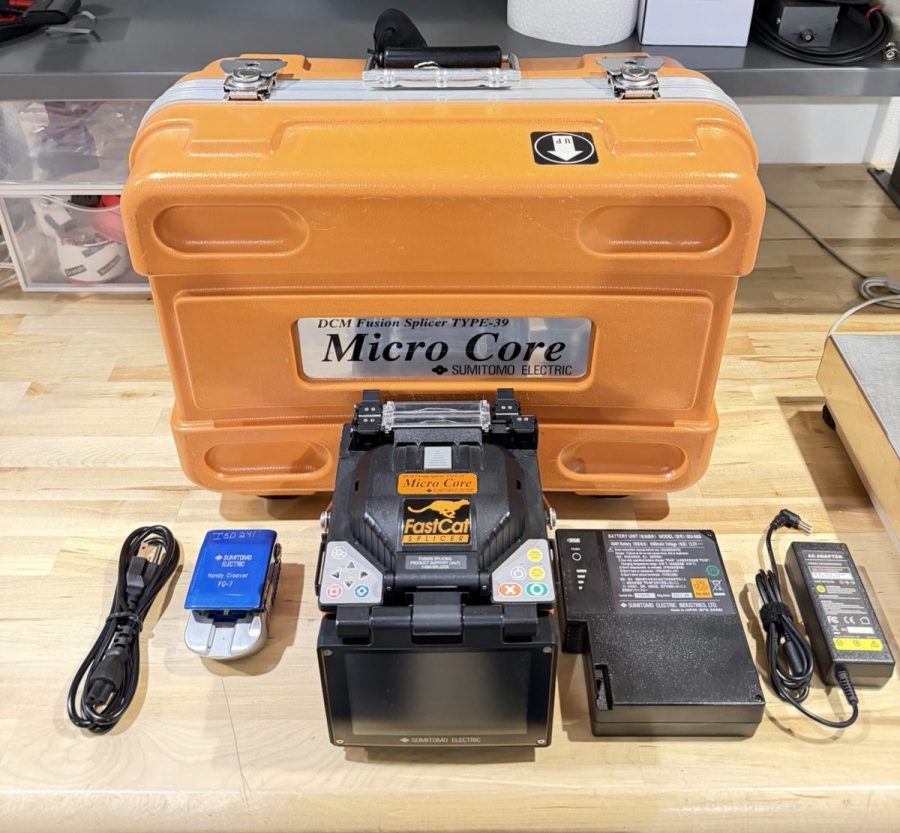

Up For sale Sumitomo Type-39 Fastcat Micro Core Fusion Splicer With Cleaver is in perfect working condition! fully operational and functions as intended.
The Sumitomo Type-39 Fastcat (Micro Core) is a core-alignment fusion splicer featuring dual independent heaters, a 5.6-inch color monitor, and a typical 9-second splice time. It supports single-fiber splicing (80-150µm cladding) with low loss, typically 0.02dB for SMF. The kit commonly includes the FC-6S-C precision cleaver for 8-16mm cleave lengths
Specification
- Splice Time: 9 seconds (typical) for single-mode fiber
- Heater Cycle Time: 30 seconds for 60mm protection sleeves via dual independent ovens
- Typical Splice Loss: 0.02 dB (Single-Mode), 0.01 dB (Multi-Mode), and 0.04 dB (NZDS)
- Alignment Method: High-resolution Direct Core Monitoring (HDCM) technology
- Compatible Fiber Types: Single-mode (SM), multi-mode (MM), dispersion shifted (DS), and non-zero dispersion shifted (NZDS)
- Fiber Dimensions: Cladding diameter of 80 to 150 µm; coating diameter of 100 to 1000 µm
