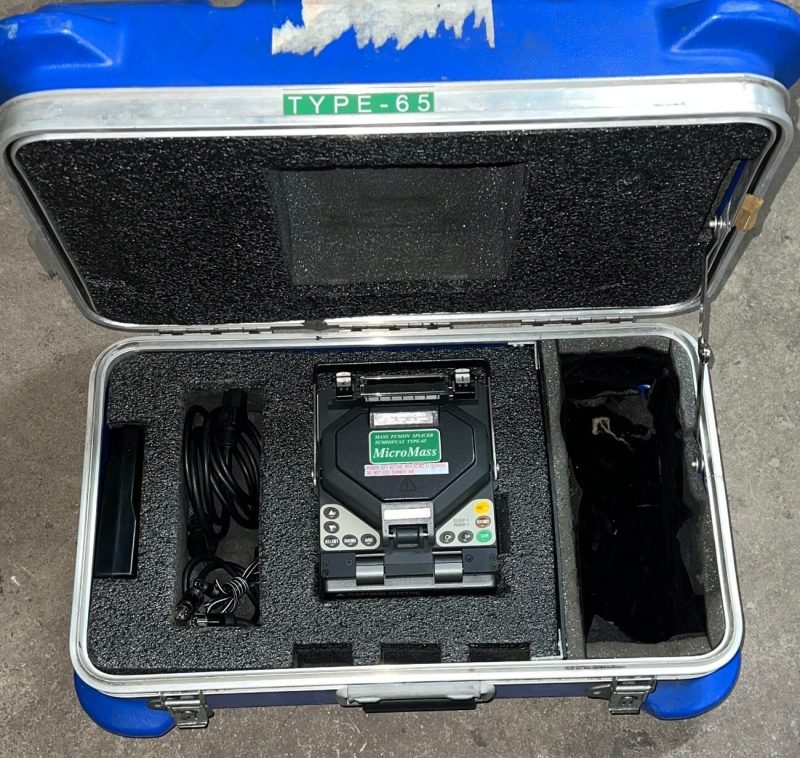

Up For sale Sumitomo Type-65 SM MM Ribbon Fiber Fusion Splicer is in perfect working condition! fully operational and functions as intended.
The Sumitomo Type-65 (specifically the Type-65M12) is a portable, fixed V-groove, mass ribbon fusion splicer designed for single-mode (SM) and multimode (MM) fibers, capable of splicing 1 to 12 fibers simultaneously. It features a 5.6-inch color LCD screen, weighs approx. 6.6 lbs (3 kg), and has a 30-second splice time, making it ideal for field operations.
Specification
- Alignment Method: Fixed V-Groove
- Fiber Types: Single-mode (SMF), Multimode (MMF), and NZ-DSF
- Fiber Count: 1, 2, 4, 6, 8, 10, or 12 fibers (ribbon and single)
- Splice Time: Approx. 30 seconds (automatic fusion)
- Typical Splice Loss: 0.04 dB (SMF), 0.03 dB (MMF), 0.07 dB (NZ-DSF)
- Magnification: Approx. 40X viewing system focusing up to 12 fibers simultaneously
-
- Weight: 6.6 lbs (3.0 kg) with battery
- Battery Capacity: More than 20 splices including heater operation per charge
- Environmental Protection: Wind protection up to 30 mph
