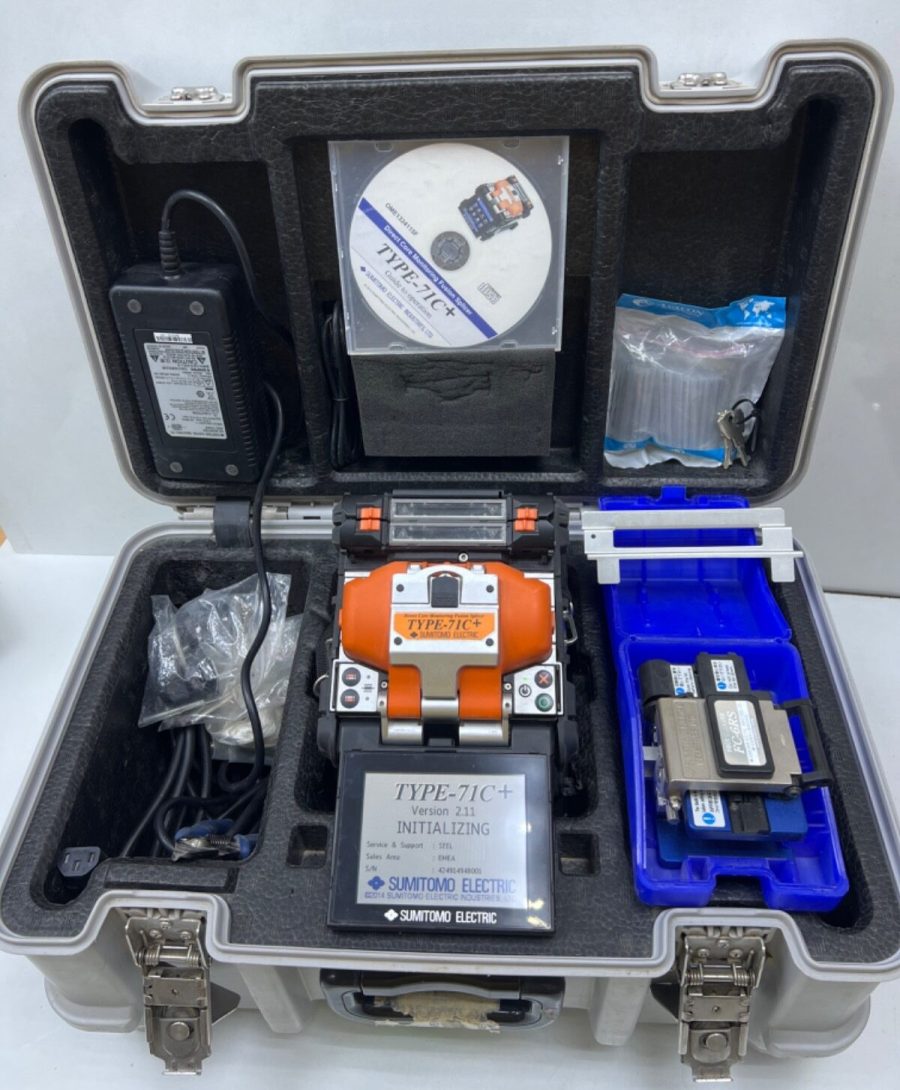

Up For sale Sumitomo Type-71C+ DCM Fusion Splicer Micro Core Fiber Fusion FC-6RS Cleaver  is in perfect working condition! fully operational and functions as intended.
The Sumitomo Type-71C+ is a high-precision, core-alignment fusion splicer designed for SMF/MMF fibers, featuring 6-second splice times and automatic calibration. Paired with the FC-6RS cleaver, it offers 30,000–60,000 fiber cleave life via automatic blade rotation. It has a 4.1-inch touchscreen, IP52 rating, and 3,000-arc electrode life
Specification
- Splice Time: Fast 6 to 7 seconds typical
- Heating Time: 14 to 28 seconds depending on mode and heater setup
- Alignment Method: High-resolution direct core monitoring and 3-axis core alignment
- Splice Loss: Typical 0.01 dB for SMF
- Weight: 2.1 kg (4.63 lbs) including battery
- Battery Capacity: Around 200 splice and heat cycles per full charge
- Fiber Compatibility: 125 µm silica glass single fibersÂ
- Cleave Length: 6 to 12 mm for 250 µm fiber; 10 to 20 mm for 900 µm fiber
- Cleave Angle: Typical 0.5 degrees
- Blade Life: Up to 54,000 to 60,000 total fibers via automatic/manual rotation positions
