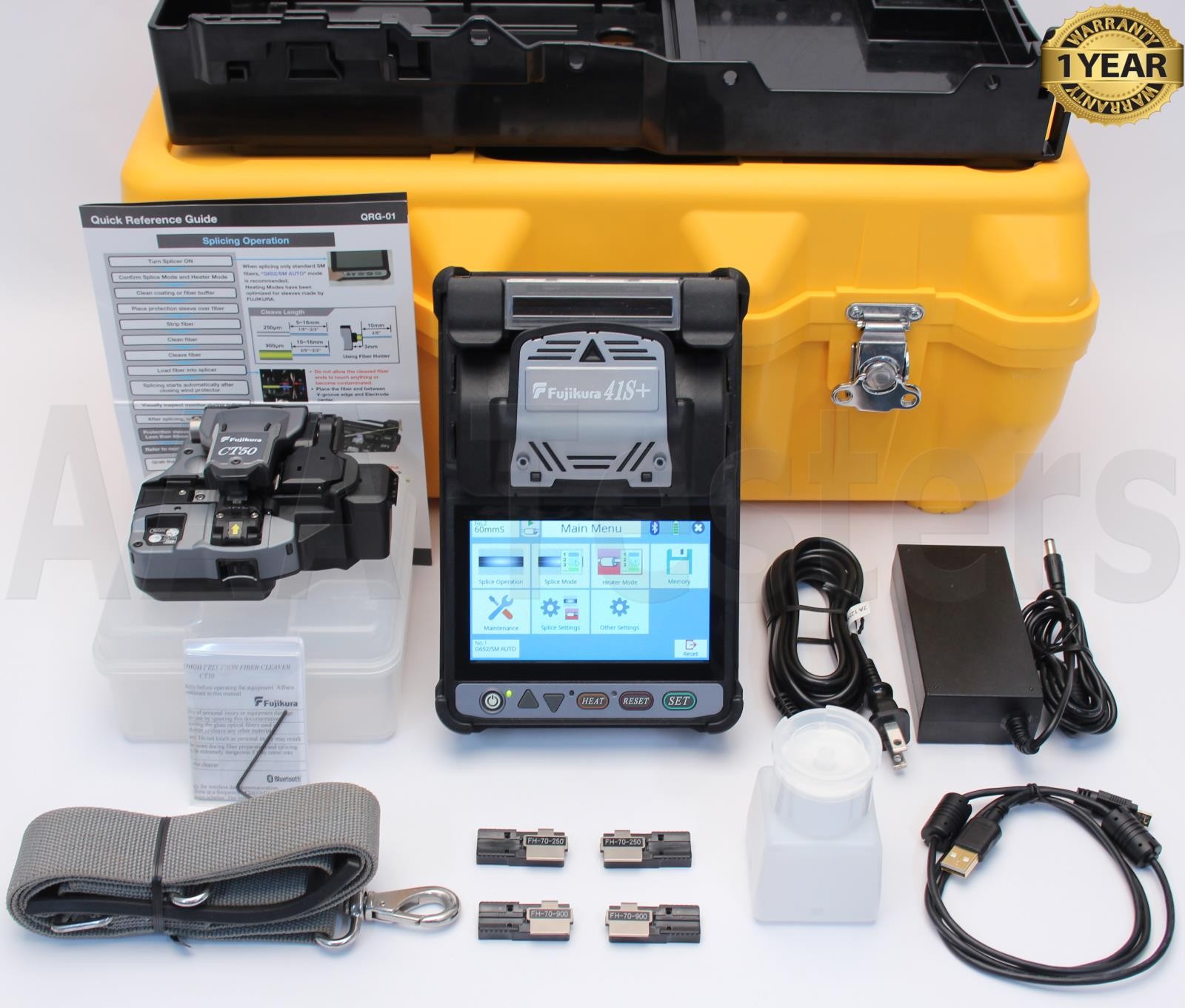

Up For sale Fujikura 41S+ SM MM Clad Alignment Fiber Fusion Splicer with CT-50 Cleaver FSM-41S is in perfect working condition! fully operational and functions as intended.
The Fujikura 41S+ is an active cladding alignment fusion splicer featuring CT-50 Cleaver integration, Warm Splice Imaging (WSI) loss estimation, and Bluetooth 4.1 LE connectivity. It delivers fast 6-second splice times, robust environmental ruggedization, and a battery capacity yielding 200 splice/heat cycles
Specification
- Alignment Method: Two-camera active cladding alignment (active V-groove).
- Splice Time: Typical 6 seconds (SM modeFast/Precise) up to 9 seconds max.
- Heating Time: Typical 16 to 25 seconds.
- Splice Loss: Typical 0.03 dB (SM), 0.01 dB (MM), 0.05 dB (DS/NZDS).
- Applicable Fibers: Single mode (G.652/G.657), Multimode (G.651), DS (G.653), and NZDS (G.655)
-
- Display: 5-inch color touchscreen monitor.
- Cleaver Integration: Wireless Bluetooth 4.1 LE connectivity with the CT-50 Cleaver for automated blade position management.
- Battery Life: Rated for approximately 200 splice and heat cycles per charge.
- Electrode Life: 5,000 splices (replaceable without tools).
- Weight: 1.3 kg (2.87 lbs) including battery
