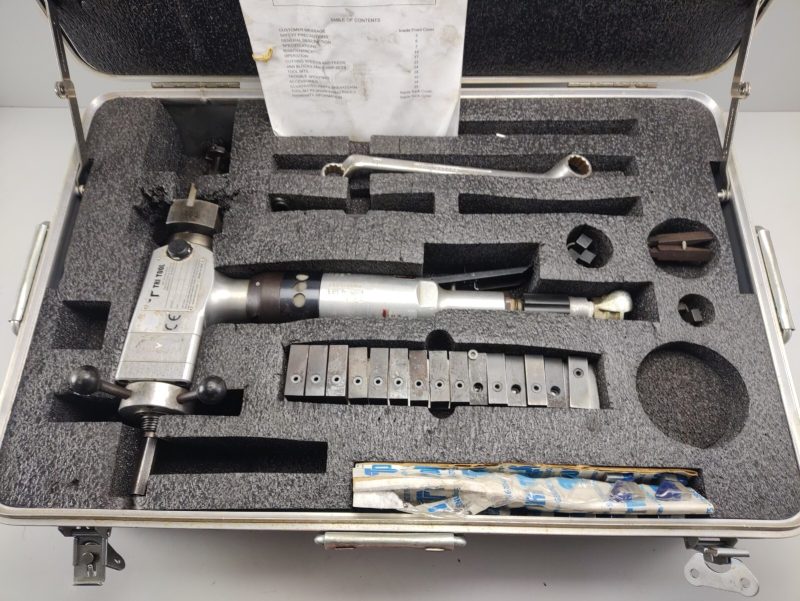

Hot sale TRI TOOL 204B BEVELMASTER Portable Lathe System 4955263 Bevelling Machine is in perfect working condition! fully operational and functions as intended.
The Tri Tool 204B Bevelmaster is a portable ID-mount machine tool designed for precision beveling, facing, and counterboring on pipe or tubing ends prior to welding. Note that “4955263” refers to Tri Tool’s underlying clamping and torque-reacting patent rather than a distinct model number
Specifications
- Pipe ID Mounting Range: 1.25” to 4.33” (31.8 mm to 110.0 mm); optional smaller mandrel available down to 0.610” (15.5 mm) ID.
- Machine Weight: 18 lbs (8.1 kg).
- Inline Feed Stroke: 1.5” (38.1 mm) maximum travel for deep counterboring.
- Tool Bit Slots: 3 concurrent slots for simultaneous beveling, facing, and counterboring.
- Drive Options: Standard heavy-duty pneumatic (air) motor (requiring ~55 cfm at 90 psi) or alternative 115V electric motor configuration.
- Cutting Head Speed: Functional range of 20 to 100 rpm (Max speed up to 162 rpm)
