Hot sale WACHS Portable Pipe Milling Machine TRAV-L-CUTTER MODEL E is in perfect working condition! fully operational and functions as intended.

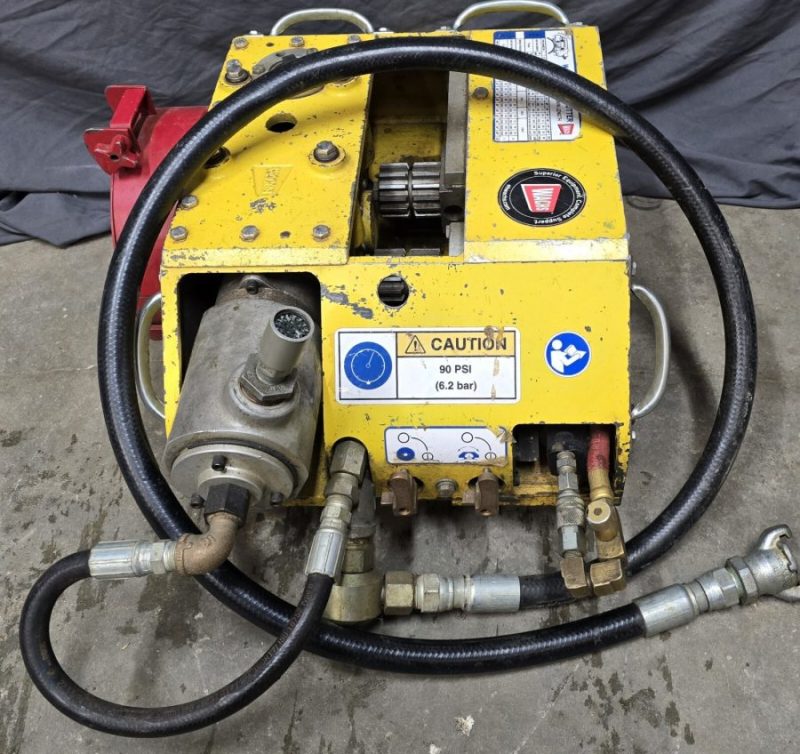

The E.H. Wachs Trav-L-Cutter Model E is a portable cold-cutting machine designed to simultaneously cut and bevel 6in–72in (DN150–1800) pipe, utilizing a 4 hp pneumatic drive motor. It operates in horizontal or vertical positions, requires 10–12in clearance, and features a positive, non-slip chain drive, delivering a weld-ready finish
Specifications
- Cutting Capacity: 6″ to 48″ (DN150–1200) standard with included chain; expandable up to 72″ (DN1800) with optional drive chain extension.
- Power Drive: Twin heavy-duty pneumatic (air) drive motors with a reversible carriage drive.
- Operation Orientation: Operates horizontally, vertically, or at any angle.
- Work Speed: Maximum 3 inches of surface feed per minute (approx. 1 inch diameter per minute).
- Clearance Requirements: 10″ to 12″ radial clearance, 20″ axial clearance.
- Machine Dimensions: 24″ (61 cm) length x 20″ (51 cm) width x 10.75″ (28 cm) height.
- Weight: Approximately 215 lbs (97.5 kg) operating weight; 418 lbs (189.5 kg) shipping weight.
- Standard Bevel Angles: 30° and 37.5° via special milling blades.
- Standard Inclusions: Twin air motors, air line lubricator/filter, drive chain for 6″–48″ pipe, operating hand tools, and a steel storage case
