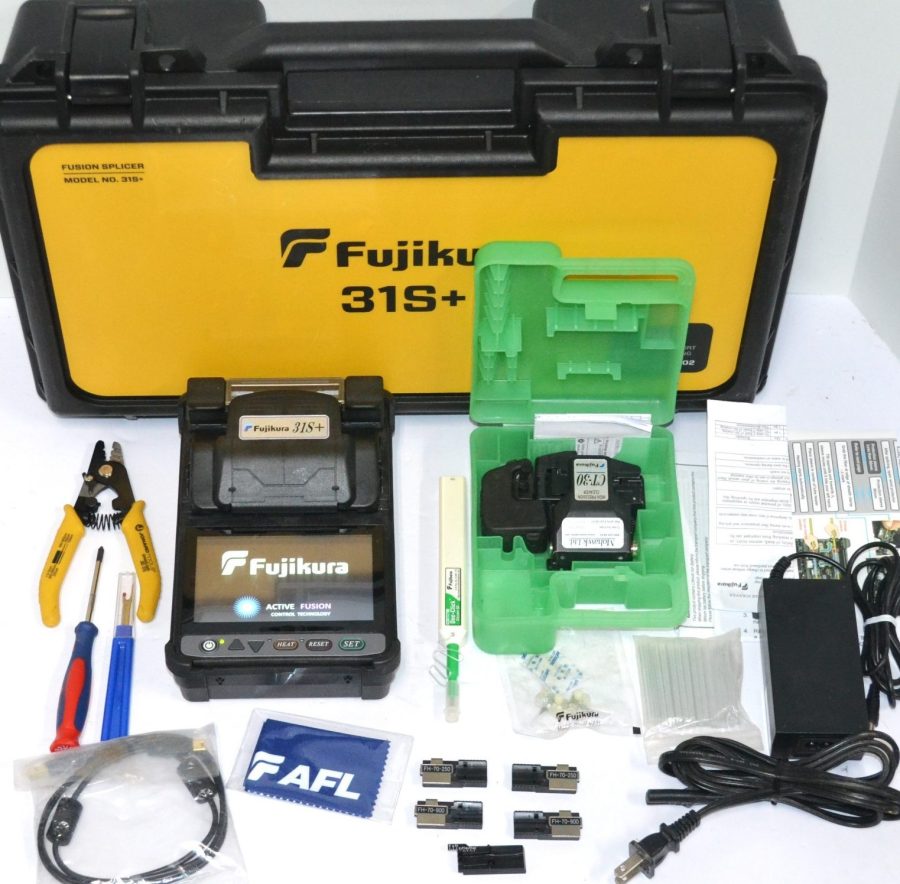

Up For sale Fujikura 3 Arcs 31S+ Sm Mm V Groove Splicer Ct 30 Â is in perfect working condition! fully operational and functions as intended.
The Fujikura 31S+ is a ruggedized, active V-groove, 2-axis, dual-camera fusion splicer designed for single-mode (SM) and multimode (MM) fibers, featuring a 6-second splice time, 5-inch touchscreen, and improved arc control. It is often paired with the high-precision CT-30 cleaver.
Specification
- Alignment Method: Active cladding alignment via dual-camera active V-groove system.
- Applicable Fibers: Single-mode (G.652, G.657), Multimode (G.651), DSF (G.653), NZDS (G.655).
- Splicing Time: Typical 6 seconds (SM FAST mode), 9 seconds (SM AUTO mode).
- Splice Loss: Typical 0.03 dB (SM), 0.01 dB (MM), 0.05 dB (DS/NZDS).
- Display & View: 5-inch TFT color touch screen with dual-axis CMOS camera (132x to 200x magnification).
- Battery Performance: Approx. 200 splice and heat cycles using BTR-11 / BTR-11A battery.
- Electrode Life: 5,000 splices (replaceable without tools).
- Dimensions & Weight: 131W x 201D x 79H mm, 1,300g (including battery)
