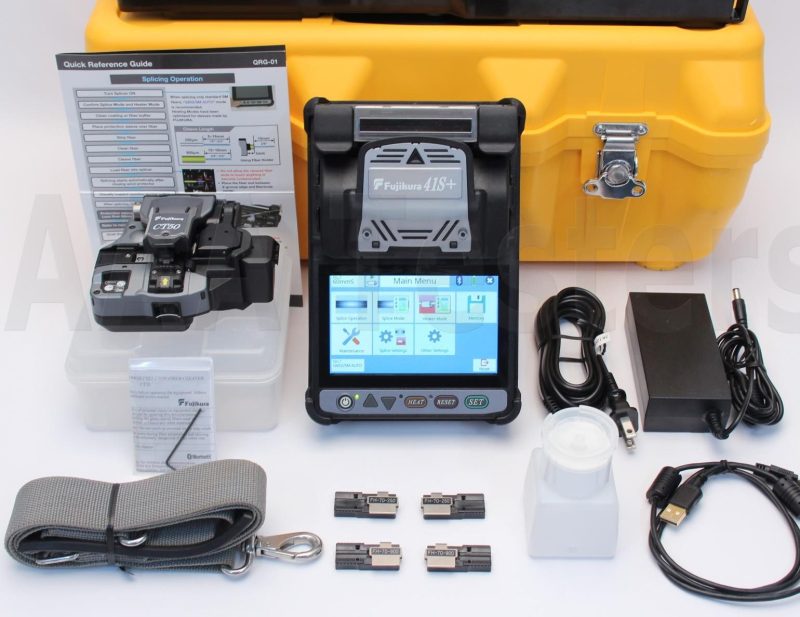

Up For sale Fujikura 41S+ SM MM Clad Alignment Fiber Fusion Splicer  is in perfect working condition! fully operational and functions as intended.
The Fujikura 41S+ is an active cladding alignment fusion splicer featuring active cladding alignment, Warm Splice Imaging (WSI) loss estimation, and Active Fusion Control (AFC) technology
Specification
- Applicable Fibers: Single-mode (ITU-T G.652/G.657), Multi-mode (ITU-T G.651), DSF (G.653), and NZDSF (G.655)
- Cladding Diameter: Approx. 125 µm
- Coating Diameter: Up to 3,000 µm using sheath clamps
- Cleave Length: 5 mm to 16 mm
- Typical Splice Loss: Avg. 0.03 dB for SM, 0.01 dB for MM, 0.05 dB for DSF/NZDSF
- Splice Time: Approx. 6 seconds in SM FAST mode, 9 seconds in AUTO mode
- Tube Heating Time: Approx. 19 to 25 seconds depending on sleeve type and fiber configuration
- Protection Sleeves: Max. 60 mm length, 6 mm diameter before shrinking
- Display: 5-inch TFT color touchscreen LCD
- Electrode Life: Approx. 5,000 splices, exchangeable without tools
Included
– (2) FH-70-250 Fiber Holders
– (2) FH-70-900 Fiber Holders
– Alcohol Pump Bottle
– Quick Reference Guide
– AC Adapter/Charger
– Power Cable
– USB Interface Cable
– Carry Strap
– Carrying Case
