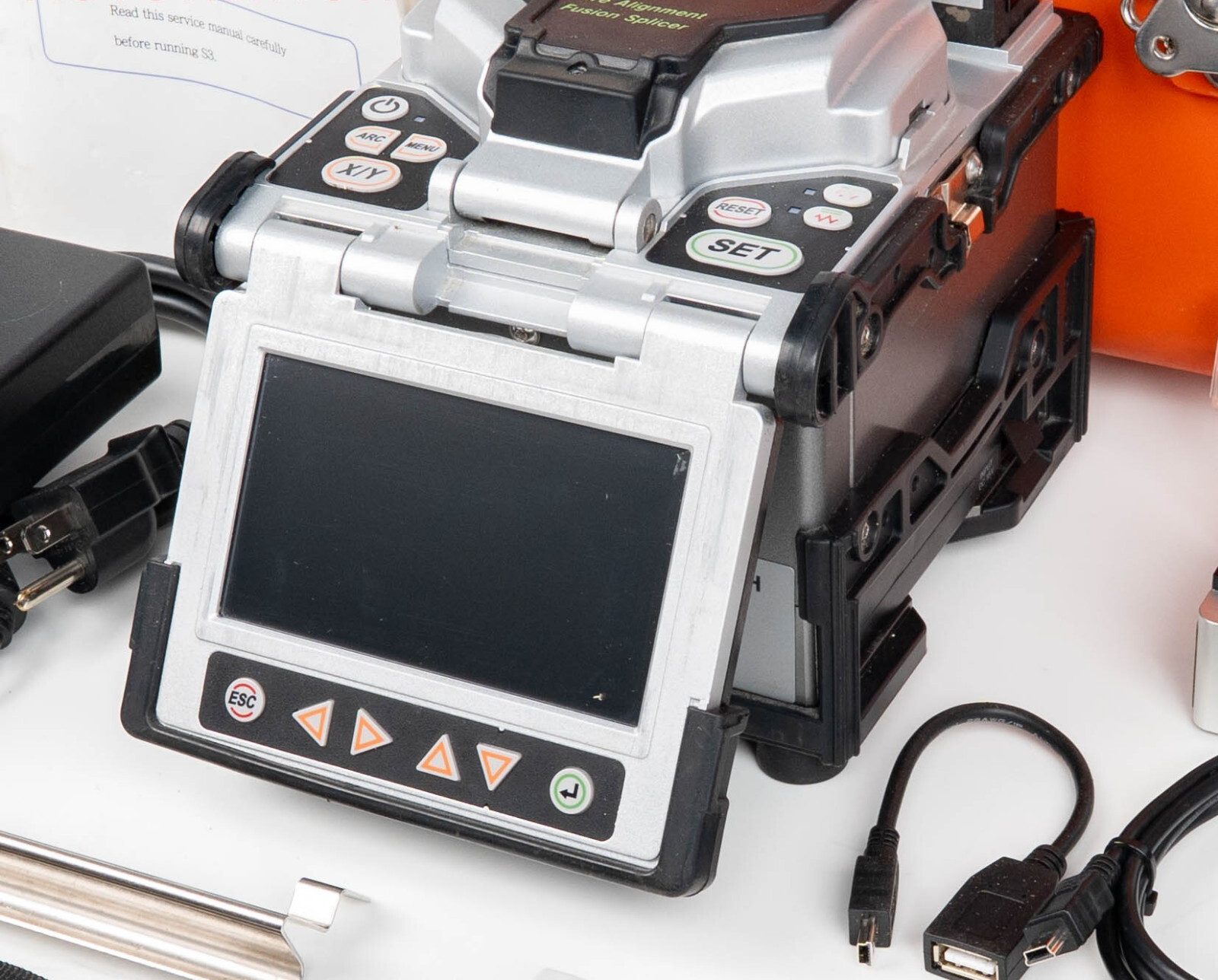

Up For sale ILSINTECH Swift S3 Core Alignment Optical Fiber Fusion Splicer is in perfect working condition! fully operational and functions as intended.
The Ilsintech Swift S3 core alignment fusion splicer is a precision splicer with state of the art features. The fastest core alignment splicer today has touchscreen and menu control options, dual heaters for super fast production applications, and a very small and lightweight footprint. The S3 can be fitted with holders for Splice-On-Connector applications with the advantage of core alignement precision.
Specifications
- Alignment Method: IPAAS core-to-core image pattern analysis
- Fiber Types: SM (G.652, G.657), MM (G.651), DS (G.653), NZDS (G.655), EDFA, and EI980
- Cladding/Coating Diameter: Cladding 80 ~ 150 µm; Coating/Buffer 100 ~ 1000 µm
- Cleave Length: 8 to 16 mm (for 250 µm)
- Splice Loss (Typical): SMF: 0.02 dB, MMF: 0.01 dB, DSF: 0.04 dB, NZDSF: 0.04 dB
- Splicing Time: Typical 7 to 9 seconds
- Heating Time: Typical 26 to 28 seconds (Dual Sleeve Heater)
- Magnification: X/Y 300X, 170X
