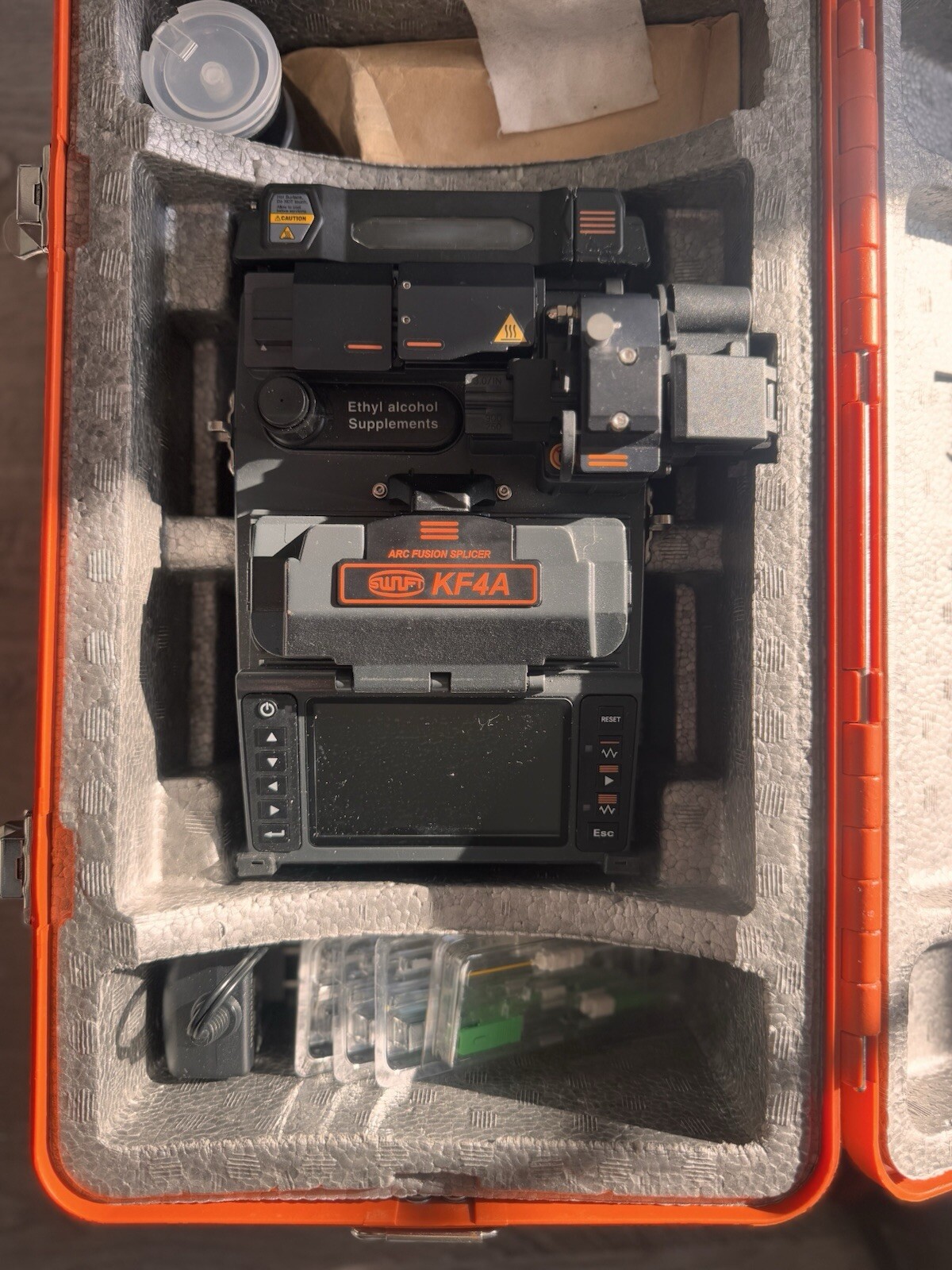

Up For sale ILSINTECH UCL Swift KF4A Fusion Splicer is in perfect working condition! fully operational and functions as intended.
The ILSINTECH UCL Swift KF4A is an “All-in-One” Active Cladding Alignment fusion splicer, ideal for FTTx and data center applications. It integrates 5 functions (stripping, cleaning, cleaving, splicing, heating) in one unit, featuring a fast 7-second splice time (SM) and 13-second heating time
Specification
- Alignment Type: Active V-groove cladding alignment (4 motors)
- Typical Splice Loss: SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB
- Splice Time: Typical 7 seconds (Standard SM mode)
- Heating Time: Typical 13 seconds with IS-60 mode
- Return Loss: > 60 dB
- Dimensions: 132 x 213 x 73 mm (without rubber bumper) / 124 x 189 x 75 mm (compact body)
- Weight: ~1.1 kg to 1.5 kg (including battery depending on configuration)
- Durability: Shock-proof, dust-proof (IP5x), and waterproof (IPx2) for harsh environments
- Operating Conditions: -10°C to 50°C, up to 5,000 meters altitude
