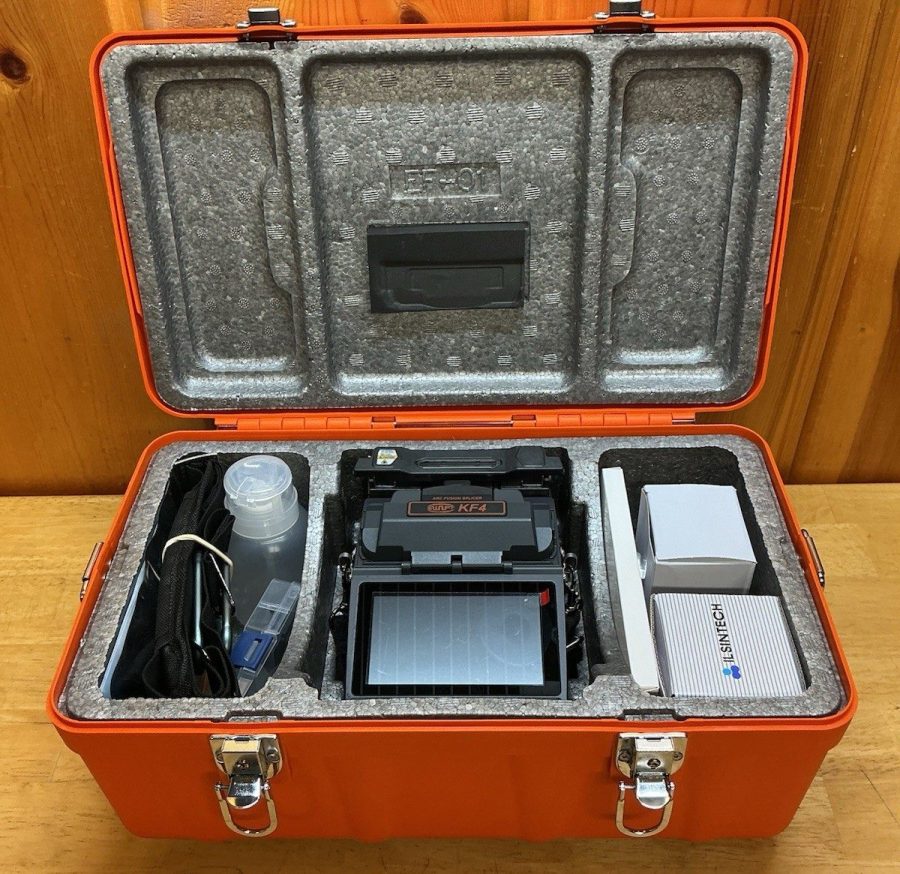

Up For sale Swift Ilsintech KF4 Fusion Splicer Kit CS-01BT Cleaver  is in perfect working condition! fully operational and functions as intended.
The Swift Ilsintech KF4 is a rugged, compact active cladding alignment fusion splicer designed for FTTH,, and enterprise networks. Featuring 4 motors, it offers ~7sec splicing, ~13sec heating, 300+ splice/heat cycles, and high accuracy for 125\(\mu \)m fibers, using IPAAS technology. The CS-01BT cleaver included in the kit is a precision, single-action tool with an automatic shard collector, providing 75,000+ cleaves
Specification
- Alignment Method: Active V-Groove (IPAAS – Image Pattern Analysis Alignment System)
- Splice Time: Typical 7 seconds (Single Mode)
- Heating Time: Typical 13 seconds (IS-60 mode)
- Typical Splice Loss: SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB
- Fiber Types: 0.25mm, 0.9mm, 2.0mm, 3.0mm indoor cables
- Modes: 300 splice modes, 100 heat modes
- Data Storage: Up to 5,000 splice records and 5,000 images
-
- Blade Life: Up to 75,000 to 77,000 cleaves via rotating blade
- Waste Management: Built-in automatic fiber scrap collector
