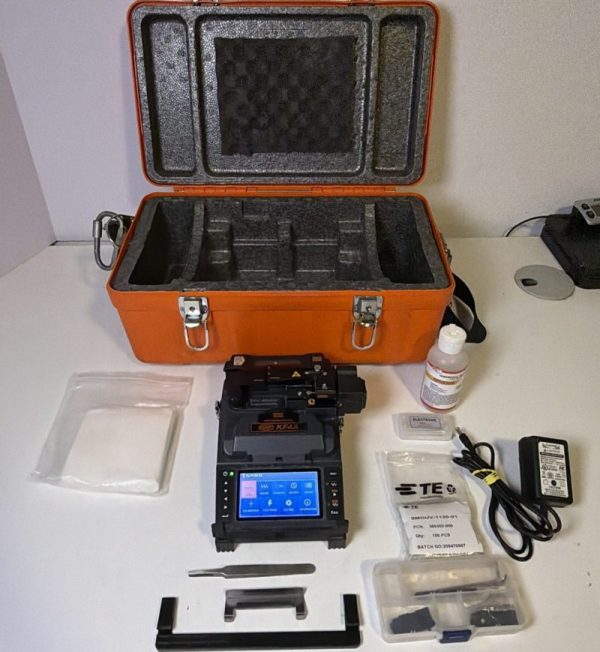

Up For sale Swift Ilsintech KF4A All-In-One Fusion Splicer  is in perfect working condition! fully operational and functions as intended.
The Swift Ilsintech KF4A is an advanced “All-In-One” active cladding alignment fusion splicer designed for FTTx, Data Center, and enterprise network applications. It integrates five essential functions—stripping, cleaning, cleaving, splicing, and protecting—into a single unit.The “1053 Total Arcs” mentioned indicates the current arc count (or splice count) logged in the machine’s memory, which is well within the typical lifespan of the electrodes.
Specification
- Alignment Method: IPAAS Active Cladding Alignment
- Splice Time: 7 seconds (Standard SM mode)
- Heating Time: 13 seconds (IS-60 mode with IS-60 sleeve)
- Typical Splice Loss: SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZDS: 0.04 dB
- Return Loss: ≥ 60 dB
- Cleave Length: 0.20 in to 0.63 in (5 mm to 16 mm)
- Blade Life: Up to 77,000 cleaves via rotating blade
-
- 5-in-1 Built-in Functions: Thermal stripping, cleaning, cleaving, splicing, and protecting (sleeving)
- Storage Capacity: Up to 5,000 splice records and 5,000 images
- Environmental Durability: Shock-resistant drop testing, dust-resistant (IP5x), and water-resistant (IPx2)
- Compatibility: Fully compatible with Fusion Splice-On Connectors (SOC)
