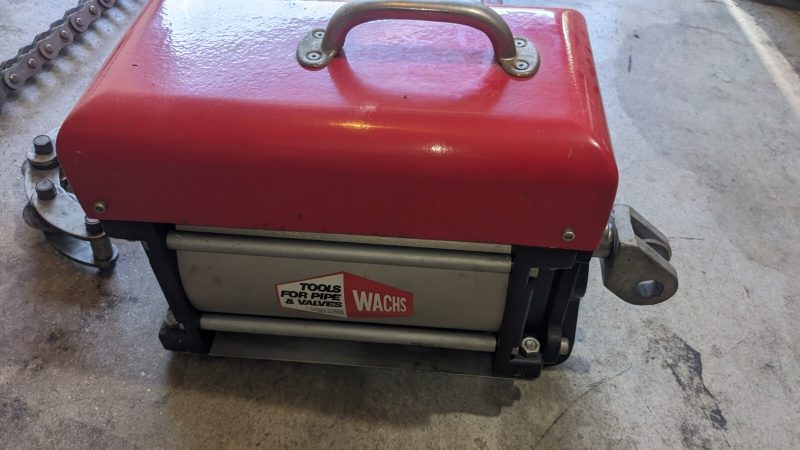

Hot sale The E.H. Wachs Trav-L-Cutter SD Pipe cutter system pneumatic is in perfect working condition! fully operational and functions as intended.
The E.H. Wachs Trav-L-Cutter SD (Model E) pneumatic pipe cold-cutting and beveling system requires an air supply of 100 CFM at 90 PSI. It uses a 4 hp governed air motor for cutter drive and a 3/4 hp air motor for the feed drive
Specifications
- Cutter Drive Motor: 4 hp governed air motor coupled with a worm gearbox.
- Feed Drive Motor: 3/4 hp air motor coupled through an overload clutch, gearbox, and chain reduction.
- Air Requirements: 100 cfm at 90 psi (approx. 0.05 m³/s at 6.2 bar).
- Cutter Speed: Variable and internally adjustable from 35 to 55 RPM (set to 55 RPM nominal) for standard use and work-hardened alloys.
- Feed Method: Positive, non-slip chain drive system
