Flash sale Thomson 2000A ATS TS880 Automatic Transfer Switch is in perfect working condition! fully operational and functions as intended.come with warranty

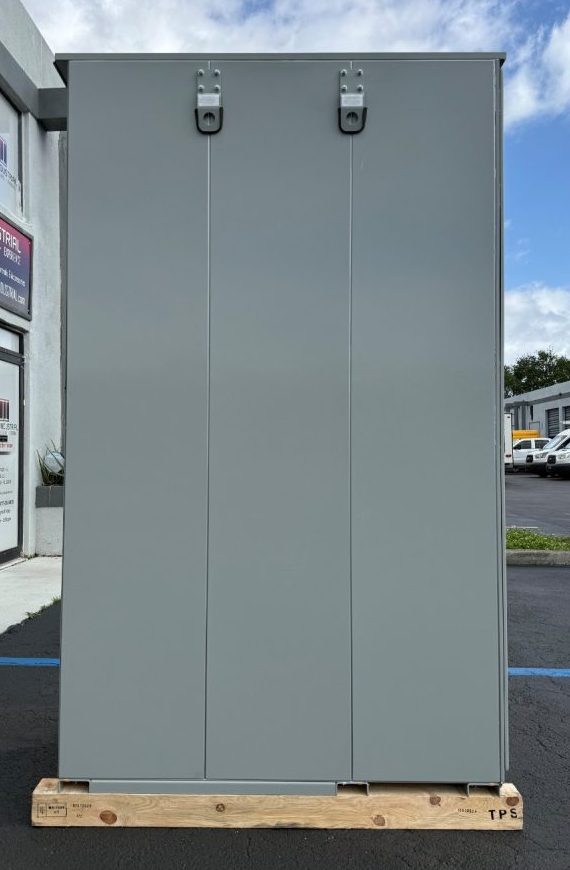

The Thomson TS880 Series 2000A Automatic Transfer Switch is an industrial-grade, microprocessor-controlled power switching system rated for 100% system load. It handles 3-phase power configurations up to 600VAC, utilizing mechanically and electrically interlocked power switching devices for safe utility-to-generator transfers.
Specification
- Amperage: 2000 Amps continuous rating.
- Voltage: Adjustable operating voltage range (208V to 600V, 3-phase, 3 or 4-wire including neutral).
- Frequency: 50/60 Hz.
- Poles: Typically 3-pole or 4-pole configurations.
- Transfer Mode: Standard Open Transition (break-before-make with adjustable neutral delay); optional Closed Transition available.
- Standards: UL 1008 Listed, CSA certified, and NFPA/NEC compliant
-
- Controller: Equipped with an advanced microprocessor controller (TSC 7320 or TSC 900 series) featuring a digital LCD display for local monitoring and programming without opening the cabinet door.
- Voltage & Frequency Protections: Under/over voltage and under/over frequency protection for both utility and generator sources.
- Phase Diagnostics: Phase sequence, rotation protection, and phase loss/unbalance detection.
