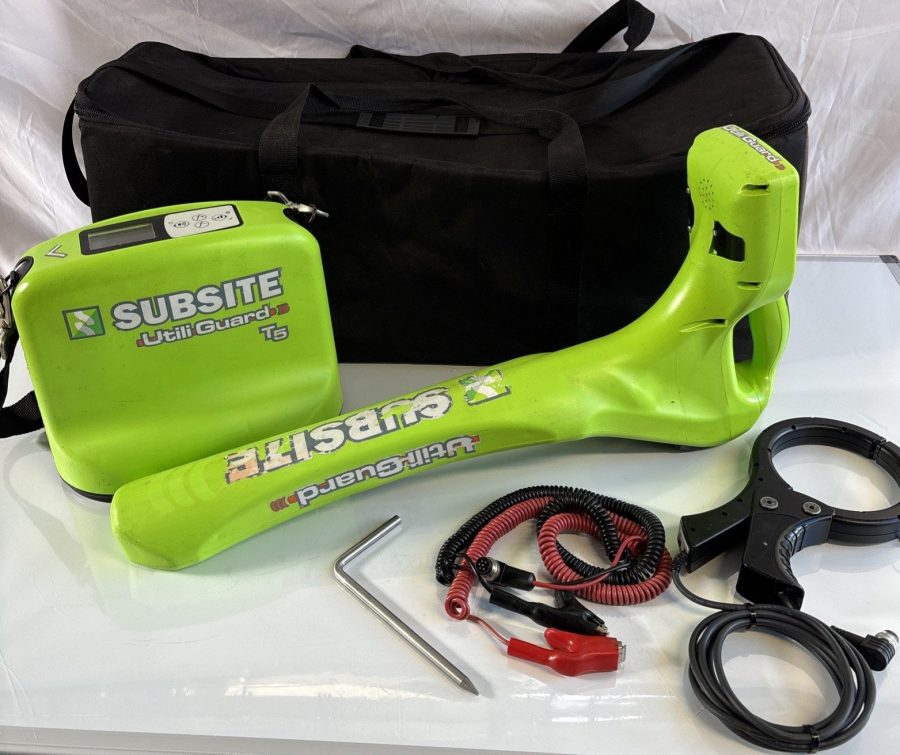

Up For sale Utiliguard Standard T5 Ditch Witch Subsite Cable Pipe Utility Locator  is in perfect working condition! fully operational and functions as intended.
The Subsite UtiliGuard T5 is a 5-watt or 12-watt, IP65-rated utility locator designed to detect buried pipes and cables with high accuracy using a wide range of frequencies (256 Hz–200 kHz). Key features include AIM technology for noise scanning, Bluetooth capability, and 100+ hours of transmitter battery life.
Specification
- Dimensions: 27.2 in (705 mm) high, 12.8 in (325 mm) long, 4.75 in (150 mm) wide
- Weight: Max 4.8 lb (2.2 kg)
- Frequency Range: 50 Hz – 200 kHz
- Maximum Depth: Auto-depth up to 20 ft (6 m); forced depth up to 40 ft
- Locate Accuracy: ±5% of depth
- Battery Life: Up to 30 hours continuous
-
- Power Output: 5-watt base unit
- Frequencies: Over 70 user-configurable standard frequencies
- Battery Life: Up to 100+ hours using alkaline batteries
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
